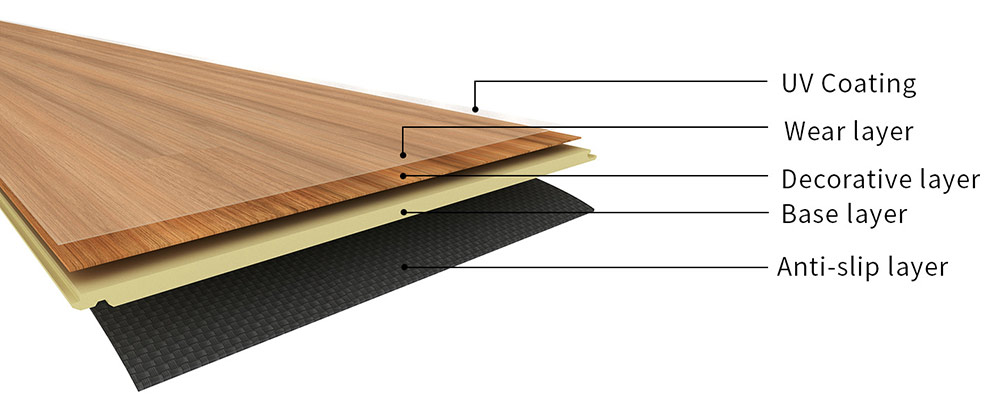

SPC Structure

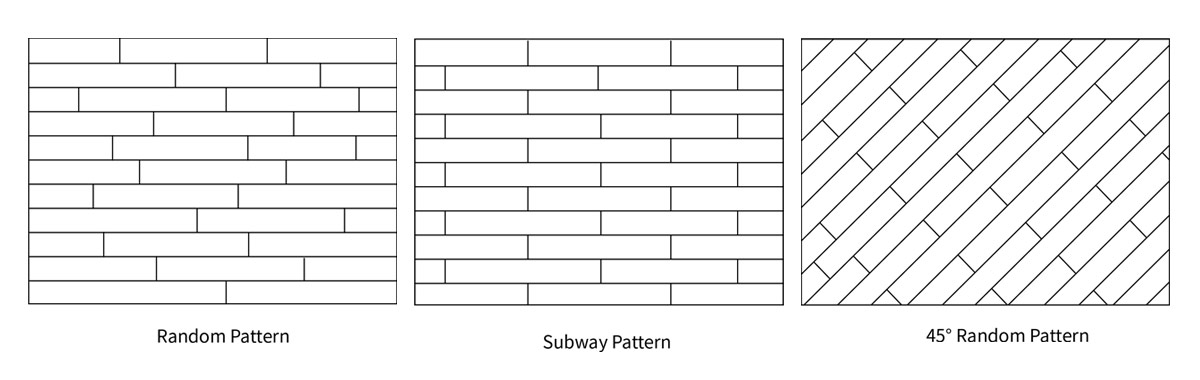

Installation Method
Technical Data
| Product information | SPC Click | |
| Material | 100% virgin PVC+Calcium calcite powder | |
| Plank Size | 180*1230mm 230*1230mm | |
| Finish | UV Coating, Semi-matt 6-8 degree | |

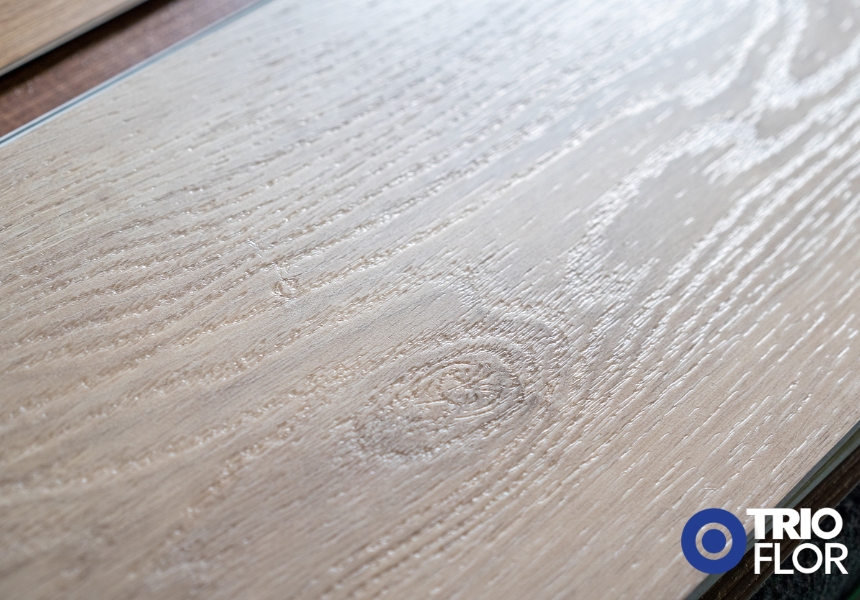

| Emboss | Deep embossed | |
| Installation | Click system | |
| Locking System | Välinge 2G/2G | |
| Bevel | Four-sided bevel | |
| Floor heating installation | Only suitable for underfloor heating | |
| UNDERLAYMENT INFORMATION | ||
| Material | IXPE | |
| Overall Thickness | 1.0mm (+/- 0.1, unstressed) | |
| REFERENCE | NORMS | RESULT |
| Tolerance of Length | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance of Width | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance on the squareness | EN ISO 24342 | side length≤400mm, squareness≤0.25mm |
| side length﹥400mm, squareness≤0.35mm | ||
| Thickness | EN ISO 24346 | 3.5/4.2 mm (+/-0.15mm) |
| Wear Layer Thickness | EN ISO 24340 | 0.3/0.5 mm (+/-0.05mm) |
| Determination of stability | EN ISO 23999 | ≤ 0.15% |
| Curling | EN ISO 23999 | ≤ 1mm |
| Color fastness | EN ISO105-B02 | 6 class |
| Reaction to Fire | EN 13501-1 | Bf1-S1 |
| Castor Chair Resistance | EN 425 | Pass |
| Peeling strength of layer | EN431 | >= 95N/5cm |
| Locking strength | ISO 24334 | Long-side: >=150N/5cm |
| Short-side: >=150N/5cm | ||
| Classification | EN685 | Class 23 for residential |
| Class 33for commercial | ||
| Stain Resistance | EN423 | Not affected |
| VOC | ISO 16000 | VOC A+ |
| Slip Resistance | DIN51130 | Class R9 |
| Residual Indentation | ISO24343-1:2007 | ≤0.1mm |
| Chemical Products Resistance | EN423 | Pass |
| Ortho-Phthalates | US EPA 3550c:2007 | None |
| PCP | EN 12673 | None |
| Formaldehyde Emission | EN717-1 | E1 |
Technical Data
| Wear Layer | 0.3mm |
| Lock System | Valinge 2G-2G |
| Overall Thickness | 5mm (4+1.0mmIXPE) |
| Size | 180x1230mm |

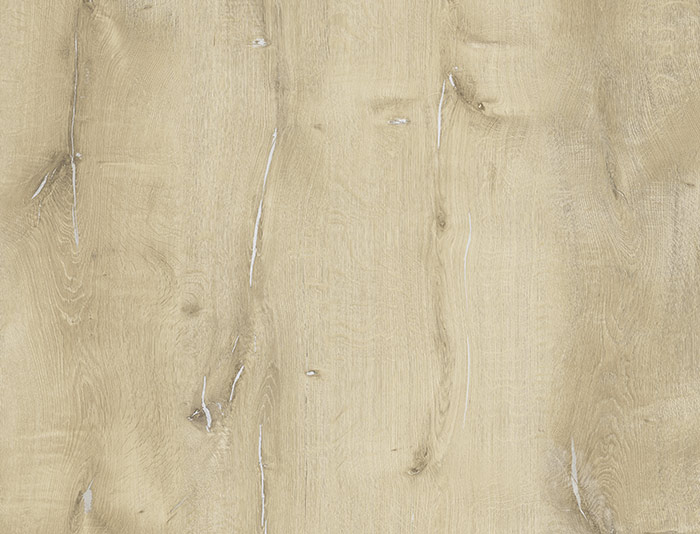

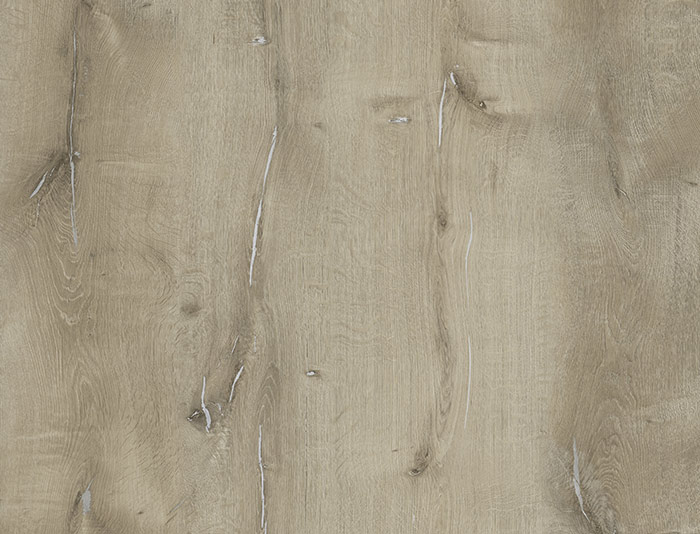

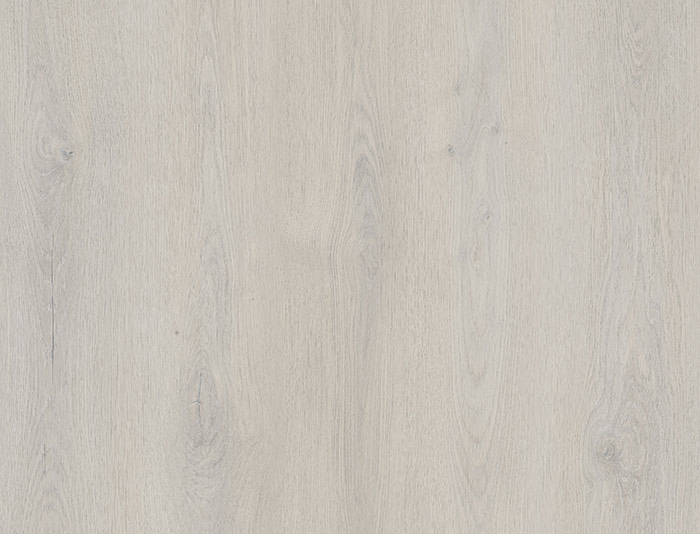

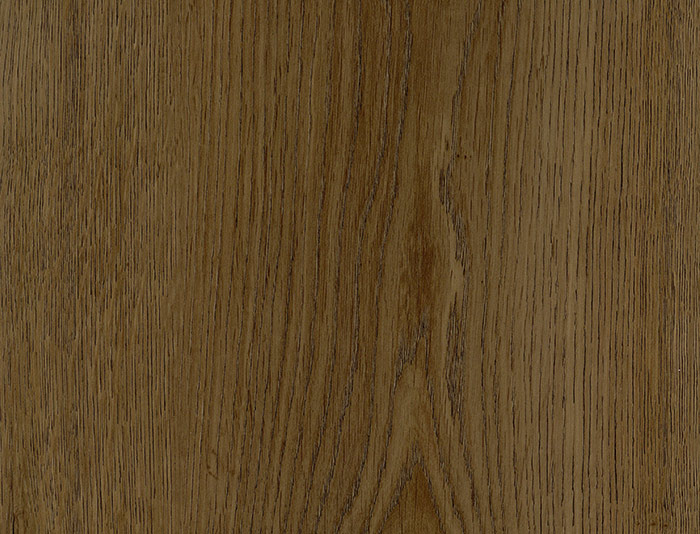

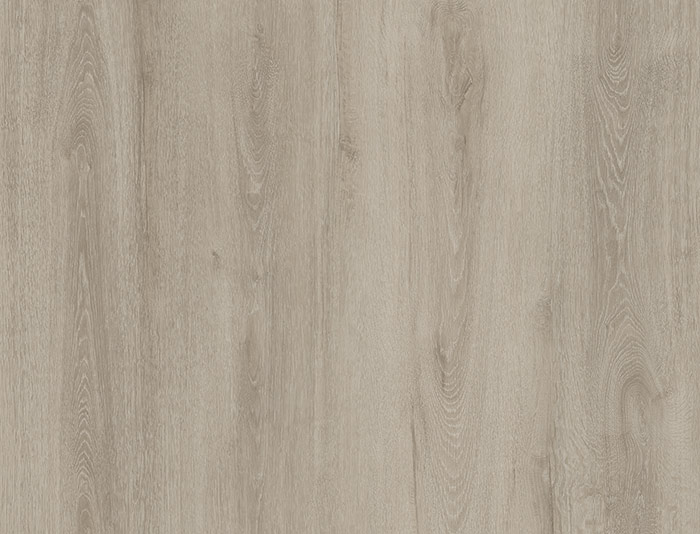

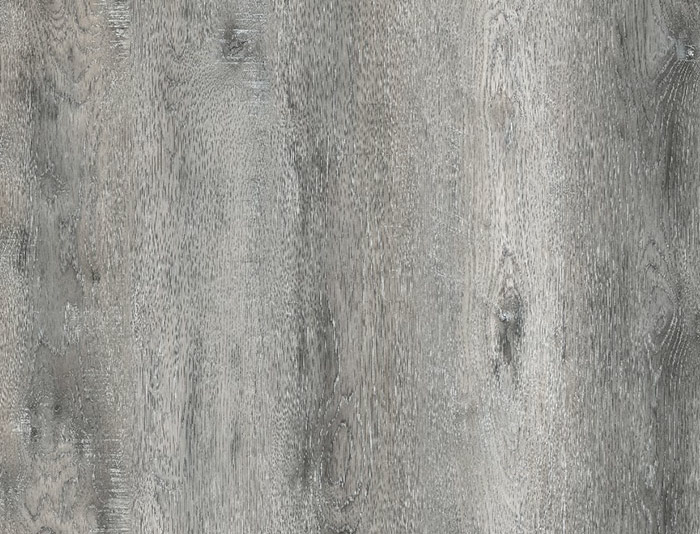

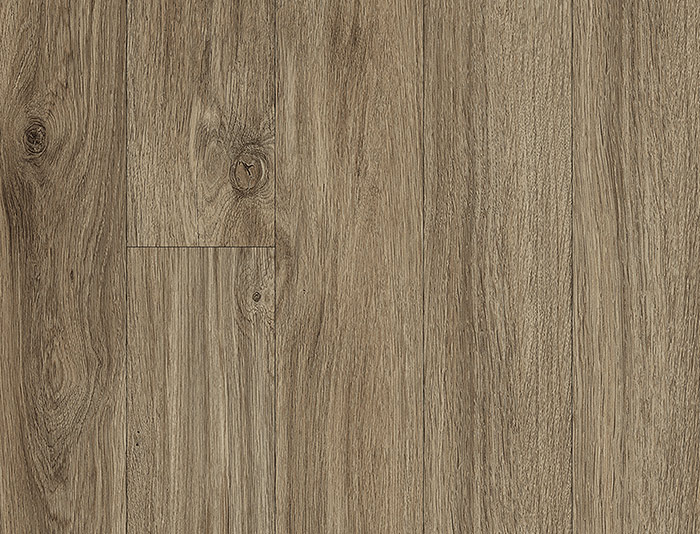

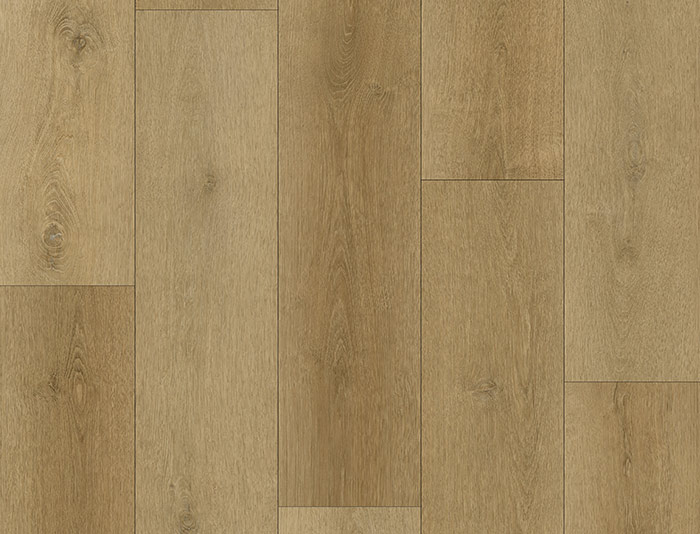

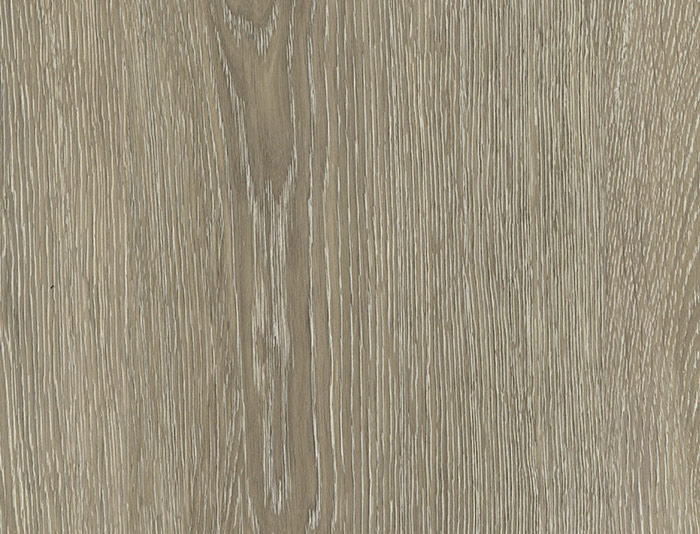

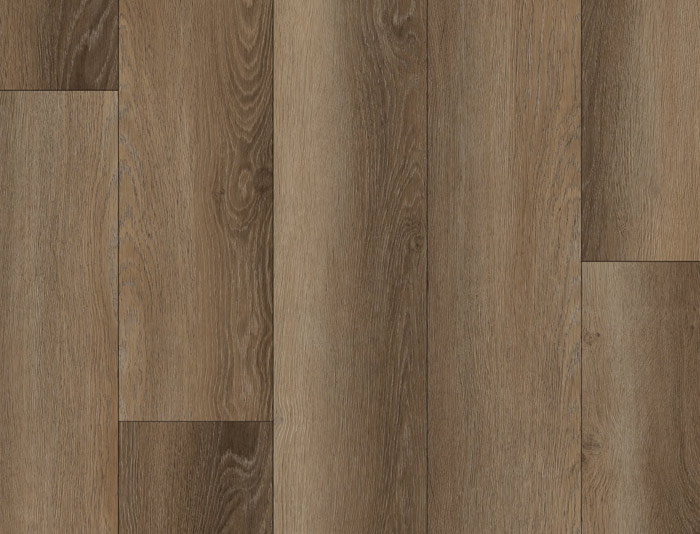

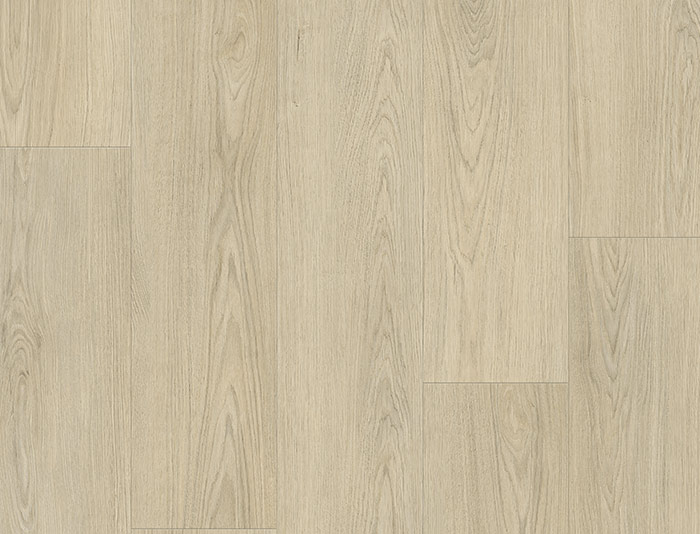

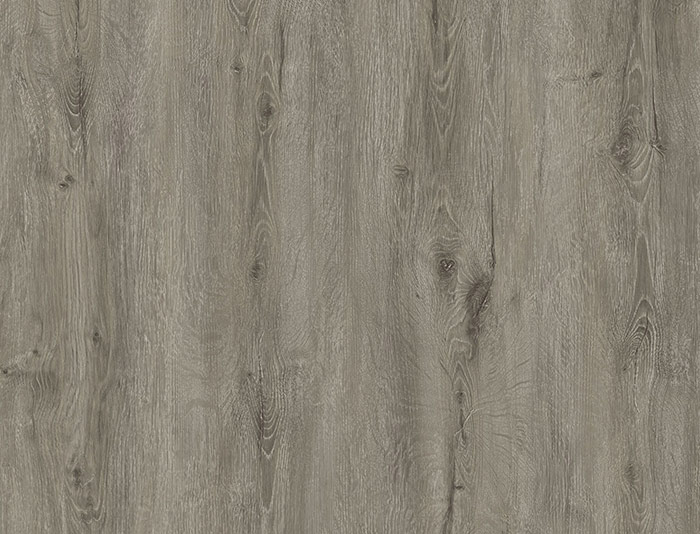

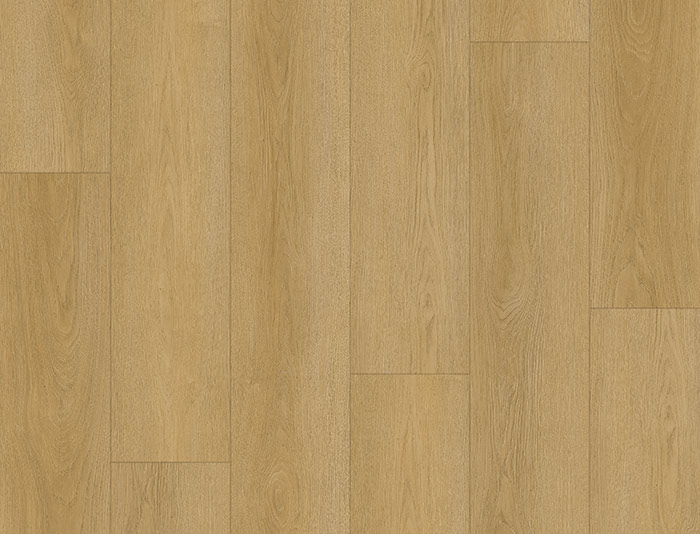

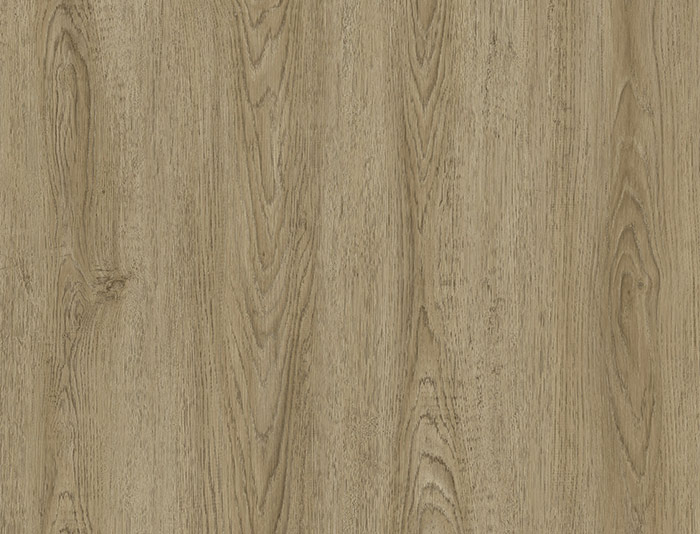

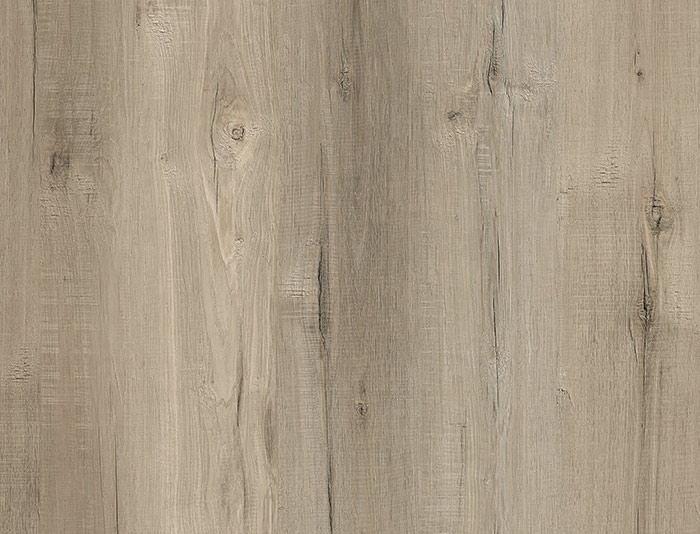

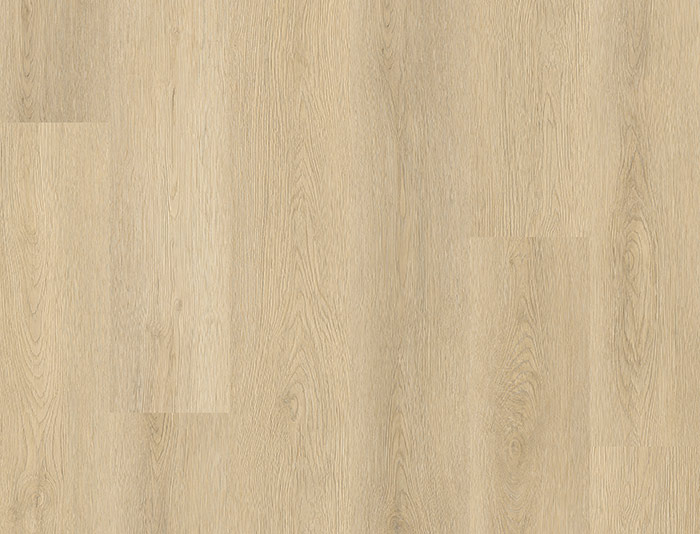

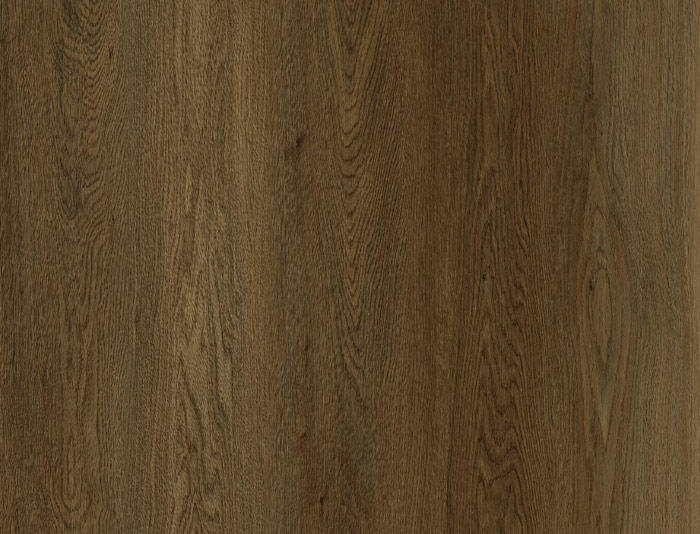

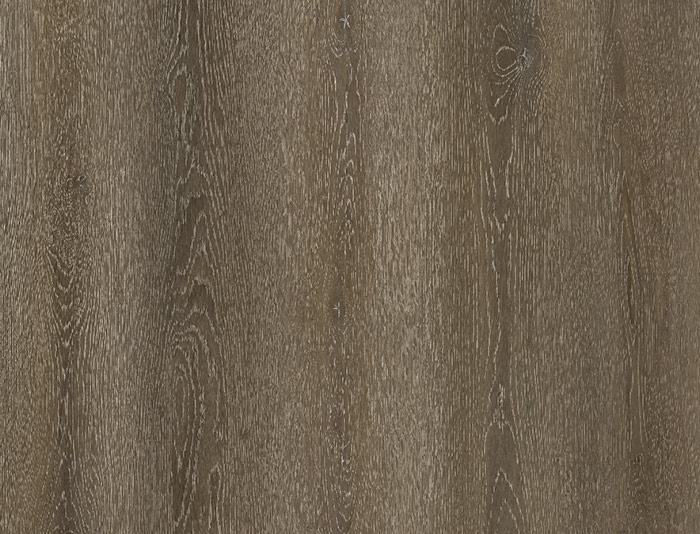

Color
SHU-2201
SHU-2202
SHU-2203
SHU-2204
SHU-2205
SHU-2206
SHU-2207
SHU-2208
Technical Data
| Wear Layer | 0.5mm |
| Lock System | Valinge 2G-2G |
| Overall thickness | 6.5mm (5+1.5mmIXPE) |
| Size | 228x1524mm |
| Embossing | EIR Embossing |

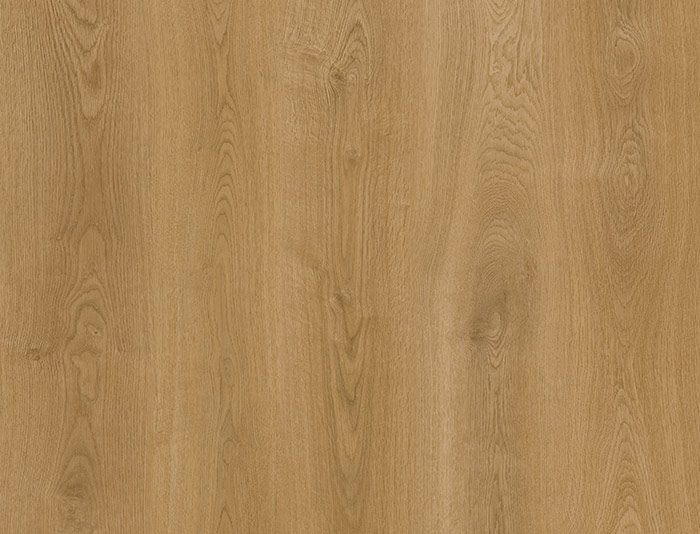

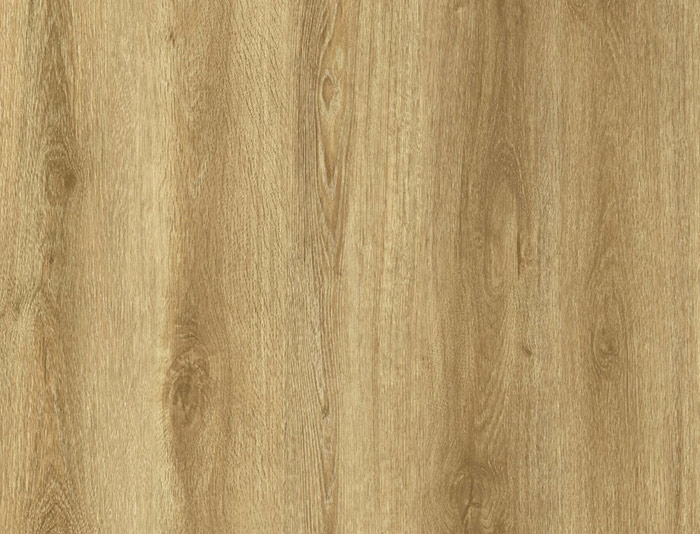

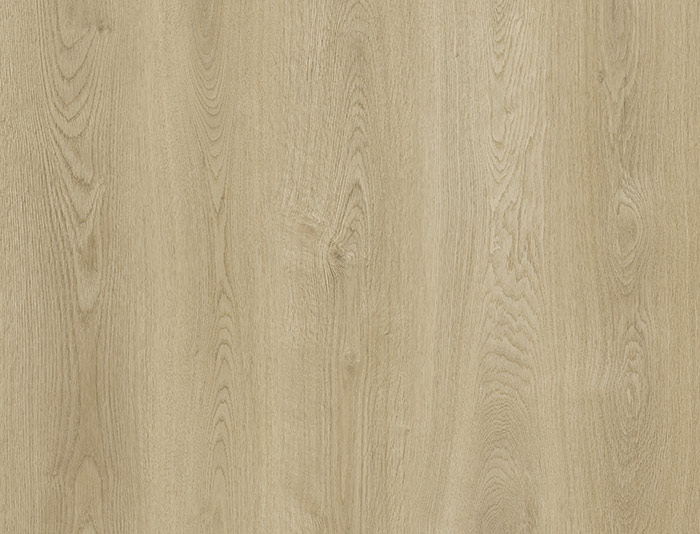

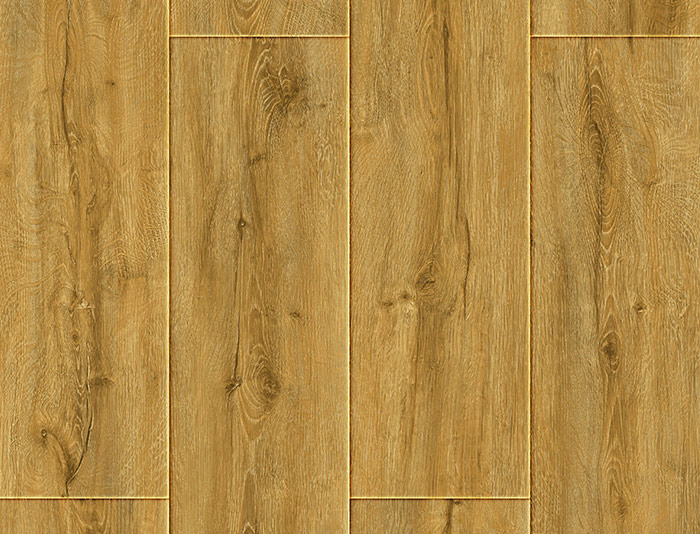

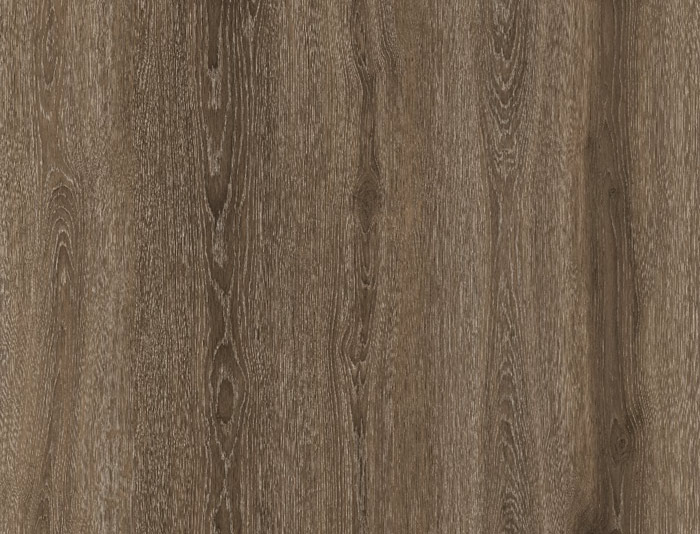

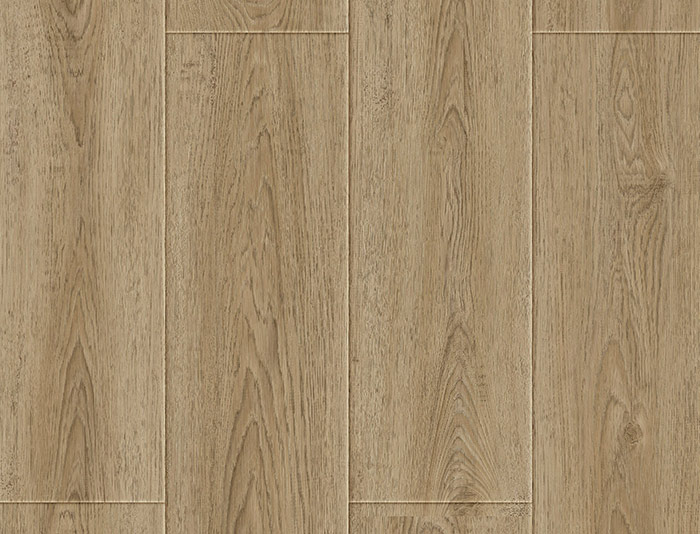

Color
SHG-7601
SHG-7602
SHG-7603
SHG-7604
SHG-7605
SHG-7606
SHG-7607
SHG-7608
Technical Data
| Size | 228 x 1840 mm |

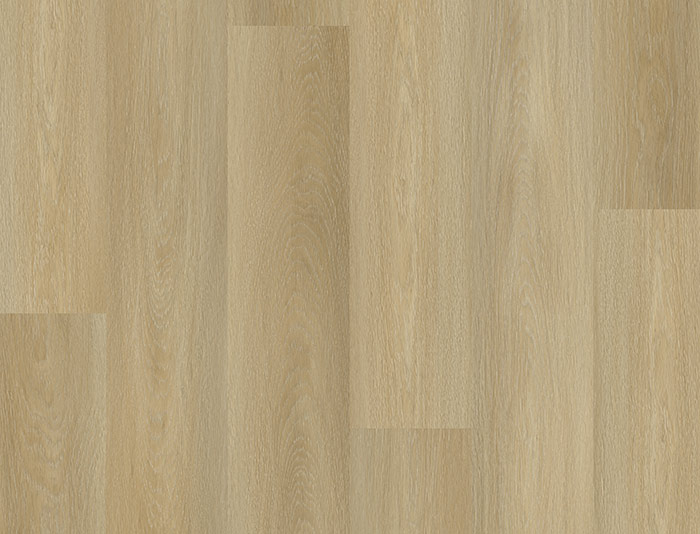

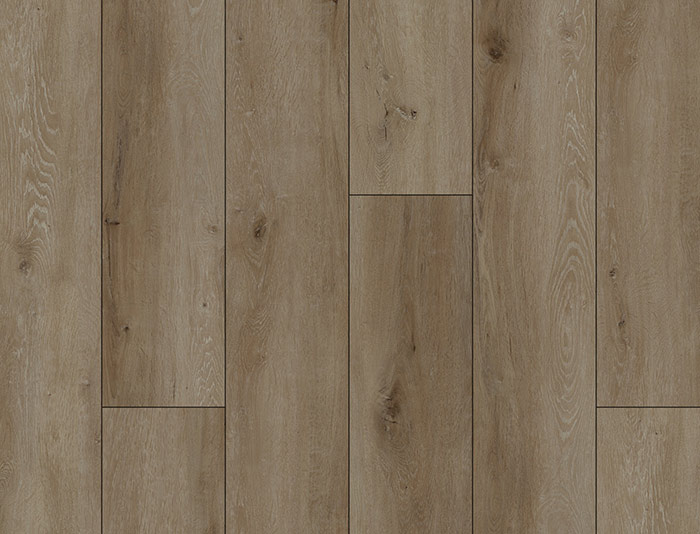

Color

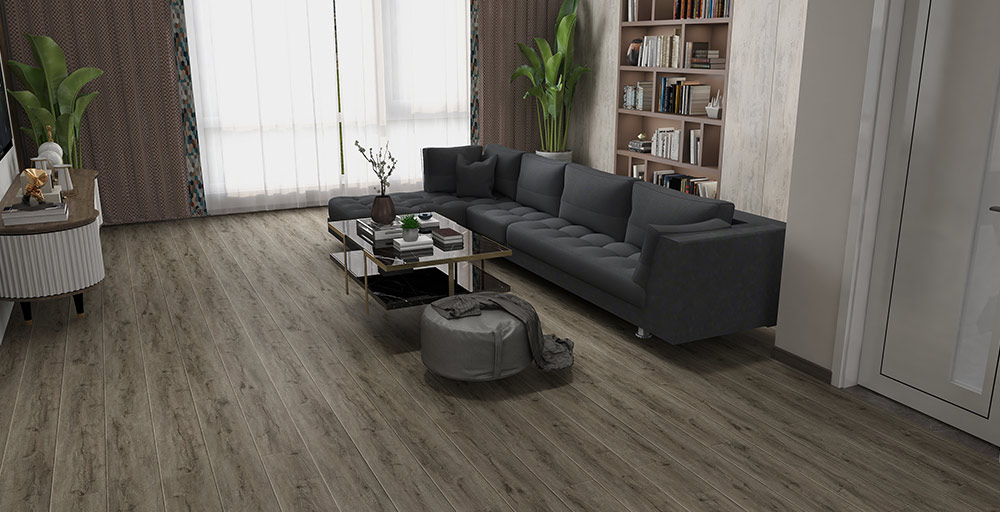

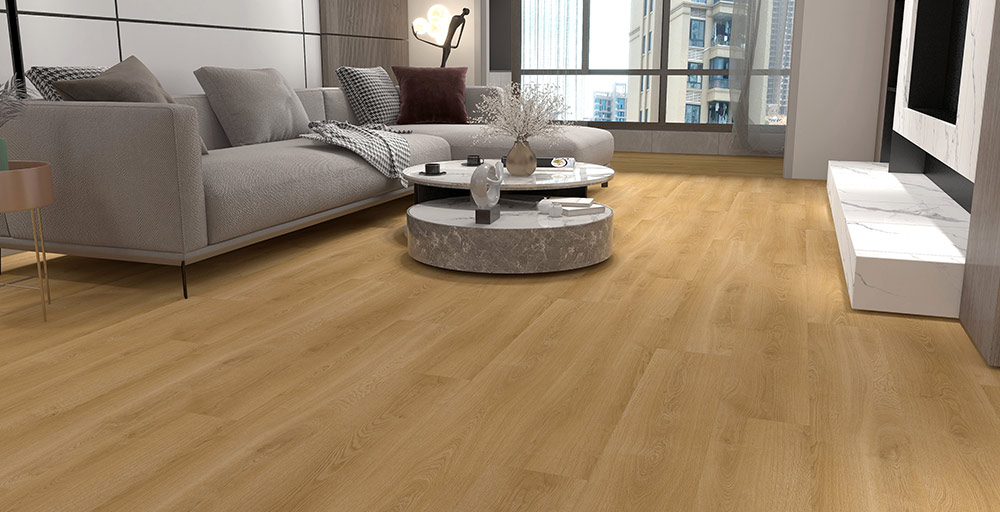

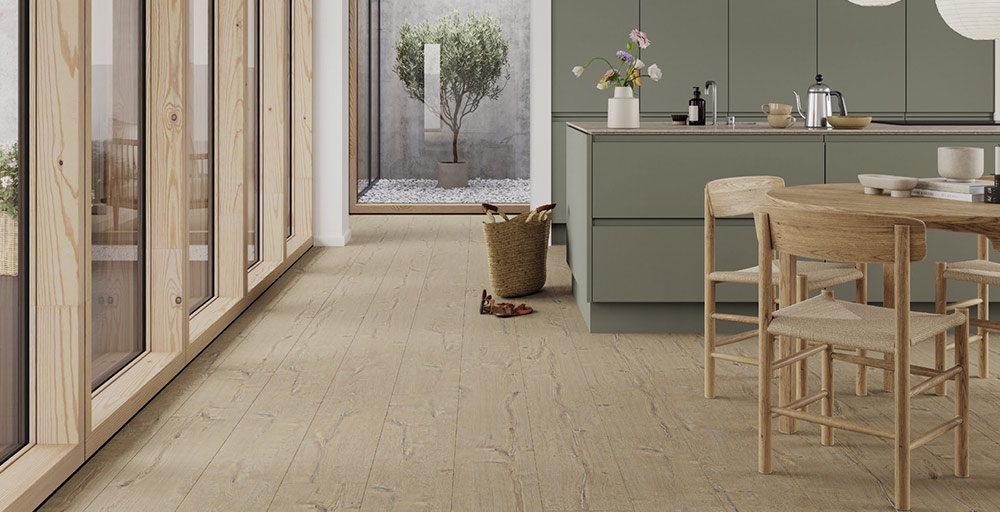

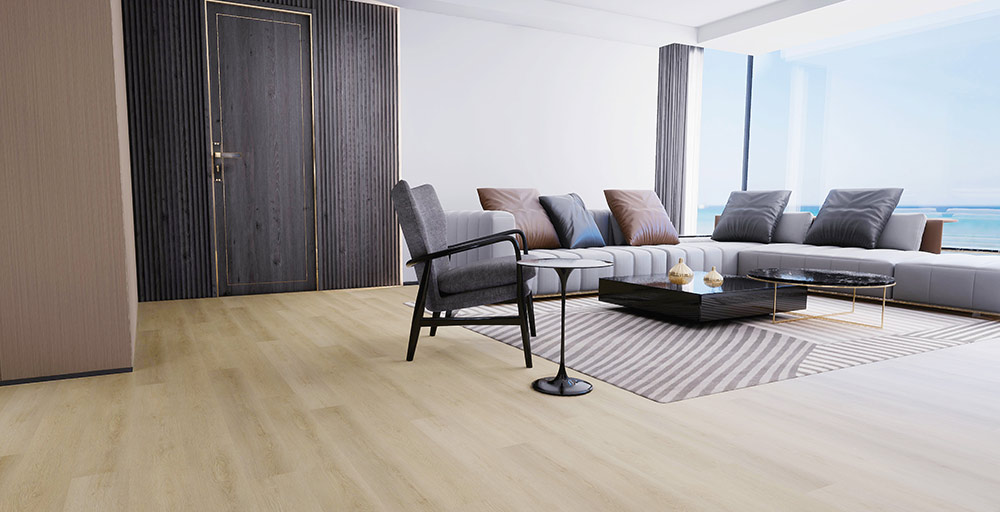

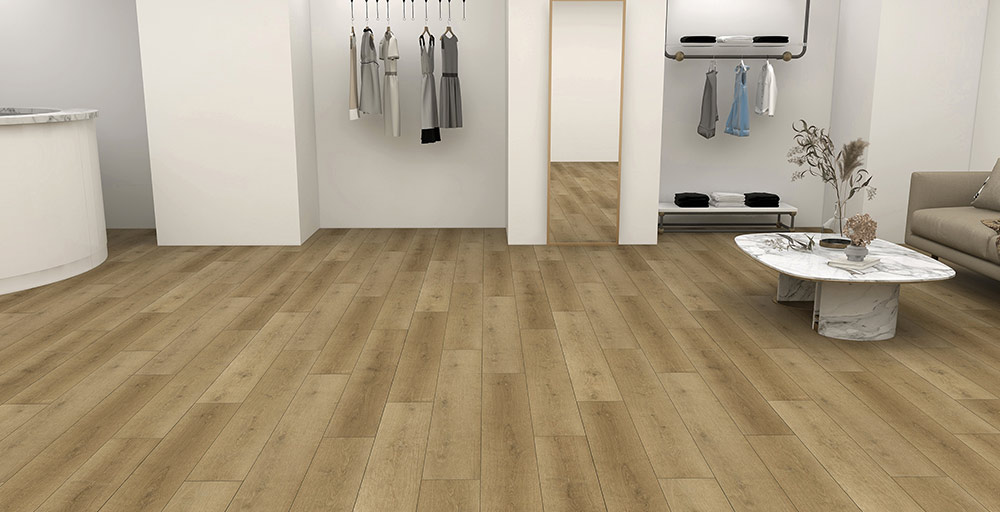

SPC floors come in a variety of colors and patterns, including wood/marble/carpet patterns, so it's easy to find the right style for your business and project.
100% Recyclable
Acoustic Comfort
Anti Slip R10
Easy Installation
Easy Maintenance
Fireproof
Pet Free
Scratch Resistance
Water Proof
Wear Resistant
