Mineral Core Flooring

REINFORCED MINERAL CORE/ PVC-FREE FLOORING

THE NEXT GENERATION OF HYBRID FLOORING


TRIOFLOR MINERAL CORE/ PVC-FREE flooring is a revolutionary break through of regular laminated flooring, the main content are natural wood fibers and Magnesium Oxide which delivers Extreme Stability, Super Fire-proof, Completely Water-proof,Indentation Resistance, Scratch Resistance and Durability, while Reducing Sound Transmission.Designed with Valinge 2G-2G FD locking edges, installation is quick and easy saving installation time and labor costs.

TRIOFLOR MINERAL CORE/ PVC-FREE flooring offers value and performance through its innovative Diamond Core technology. Thelow maintenance high performing Diamond Core finish layer is resistant to scratching, scuffing and burning cigarette.


Learn more and buy it

Mineral Core Flooring Hybrid Flooring


REINFORCED MINERAL CORE/ PVC-FREE

Introducing an innovative reinforced mineral core/ pvc-free that contains no plastic.

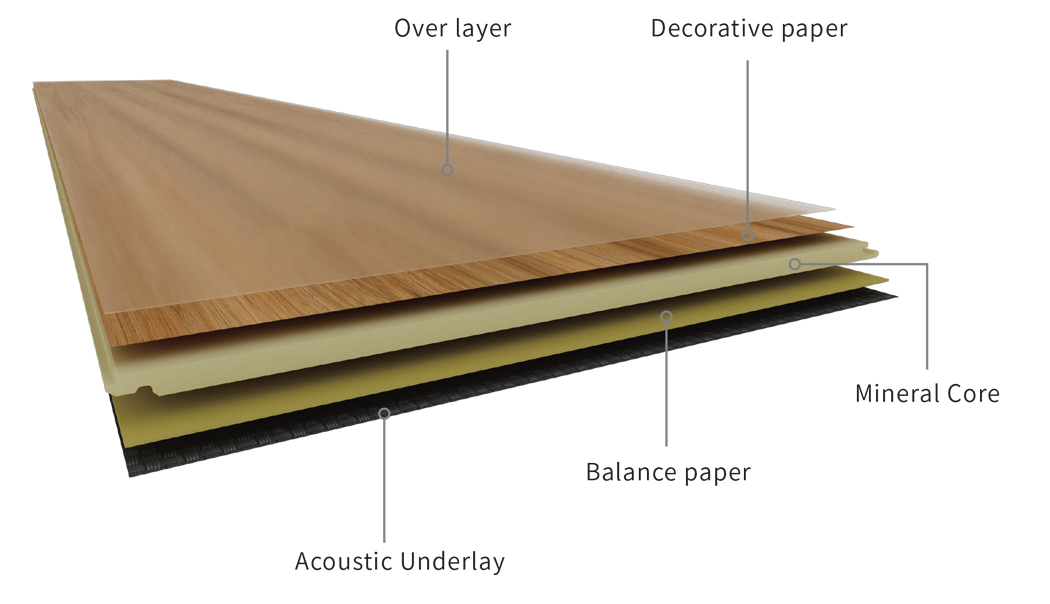

Mineral Core Flooring exploded view


Technical Data

TRIOFLORMineral Core/ Pvc-Free Board
ITEMTesting MethodUnit MgOSiO(Hign density)SiO(Low density)
LengthEN427mm1215mm1225mm1225mm
WidthEN427mm195mm193mm193mm
Overall ThicknessEN428mm8.2mm6mm / 8mm6mm /8mm
Density-g/cm31.44g/cm31.3g/cm30.9g/cm3
Aperture between two planks
mm≤0.1mm≤0.1mm≤0.1mm
StraightnessEN427mm≤0.2mm≤ 0.04mm≤ 0.04mm
SquarenessEN427mm≤0.15mm≤ 0.04mm≤ 0.04mm
Curling after exposure to heatEN434mm≤0.5mm
(80℃6h)
≤0.06mm
(80℃6h)
≤0.1mm
(80℃6h)
Dimensional stability after exposure to heat (%)EN434-≤0.1% (80℃6h)00
Surface BondingEN 311:2002MPa1.521.651.5
Thickness SwellingISO 24336:2005
1.60%0.03%0.05%
Effect of castor chairEN425-No disturbanceNo disturbanceNo disturbance
Abrasion ResistanceEN 13329-AC3/AC4AC3/AC4AC3/AC4
Scratch-resistantEN 438-Level 4Level 4Level 4
Click tensile strength· Electronic tension   tester-2G/240N/5cm2G/240N/5cm2G/240N/5cm
Staining resistanceEN 438-2
Category 1+2: level 5
Category 3: level 4/5
Category 1+2: level 5
Category 3: level 4/5
Category 1+2: level 5
Category 3: level 4/5
Slip resistance on an inclined planeDIN 51130
R9R9R9
Residual IndentationEN433mm≤0.03mm0.01mm0.01mm
Color Fastness/GradeISO20105-B02Degree≥6 Degree≥6 Degree≥6 Degree
Fire RatingEN13501-1
Class A2 fl -s1, d0Class A2 fl -s1, d0Class A2 fl -s1, d0
Cigarette resistanceEN 438-2
Level 4Level 4Level 4
European CliassificationEN 685-23-33-4223-33-4223-33-42
Underfloor heating--suitablesuitablesuitable
Formaldehyde emissionEN 717-1
000
Heavy Metal EN 71-3:2019
000
TOVC after 28 daysISO 16000-6μg/m3<10 μg/m3<10 μg/m3<10 μg/m3
