EIR SPC Flooring

EIR SPC flooring is a range of SPC flooring which the flooring made with EIR tech.  the EIR stands for Embossing in register. EIR tech, flowing the wood decor texture creating the appearance of wood grain similar to real hardwood. This process intensifies the texture, depth, and appearance of the floor. EIR SPC flooring with authentic texture has a more natural and beautiful appearance and brings a more realistic touch.

EIR technology can be applied to a wide range of designs and patterns, providing a wealth of visual options that can meet the needs of different decorative styles.


SPC Structure

SPC Horizon Plank

Structural Description

UV Coating:Enhanced stain-resistant, anti-bacterial and water-resistant flooring.

Wear layer:Protect the floor color from wear and tear for a long time, so that the floor lasts for a long time.

Decorative layer:The authentic wood or stone grain texture enhances visual and tactile realism, making the floor look closer to natural wood or stone.

Base layer:Calcium powder and resin powder are mixed in a certain proportion to form a composite floor covering material, which enhances the pressure resistance of the floor.

Anti-slip layer:Non-slip,shock-absorbing and quiet.

Product Features

Realistic wood grain effect : EIR technology allows the wood grain texture on the surface of the flooring to be precisely aligned with the pattern of the printed layer, providing a very realistic wood grain appearance and texture, close to that of a natural wood floor.

High abrasion resistance: EIR SPC flooring has a wear-resistant layer on the surface, which is highly abrasion-resistant and can withstand high-traffic wear and tear, making it suitable for both commercial and domestic use.

Waterproof and moisture-proof: The substrate of SPC flooring is mainly made of stone powder and PVC, so it has excellent waterproof performance and is not easy to be deformed by moisture, which makes it suitable for kitchens, bathrooms and other humid environments.

Environmental protection and health: SPC flooring does not contain formaldehyde and other harmful substances, in line with environmental standards, after installation will not release harmful gases, harmless to human health.

Strong stability: due to its special structure, SPC flooring has high dimensional stability, not easily affected by changes in temperature and humidity, will not produce expansion or contraction phenomenon.

Easy to install: EIR SPC flooring is usually installed in a locking mode, without glue, and can be laid directly on the original floor, making it easy and quick to install.

Simple maintenance: The surface is easy to clean and maintain, requiring only daily sweeping and regular mopping to keep it clean and tidy.

Good durability: Due to its excellent abrasion resistance, waterproofness and stability, EIR SPC flooring has a long service life and can maintain its beauty and functionality over time.

Trioflor EIR SPC flooring

Trioflor have 11 EIR patterns, each patterns have 4-10 different colors.We can customize exclusive EIR colors for clients.

Technical Data

Product informationSPC Click
Material100% virgin PVC+Calcium calcite powder
Plank Size183*1220mm
FinishUV Coating, Semi-matt 6-8 degree
EmbossDeep embossed
InstallationClick system
Locking SystemVälinge 2G/2G
BevelFour-sided beveled
Floor heating installationOnly suitable for underfloor heating
Overall Thickness1.0mm (+/- 0.1, unstressed)
Tolerance of LengthEN ISO 24342≤0.15% , up to 0.5mm maximum
Tolerance of WidthEN ISO 24342≤0.15% , up to 0.5mm maximum
Tolerance on the squarenessEN ISO 24342side length≤400mm, squareness≤0.25mm
side length﹥400mm, squareness≤0.35mm
ThicknessEN ISO 243463.5 mm (+/-0.15mm)
Wear Layer ThicknessEN ISO 243400.3/0.2 mm (+/-0.05mm)
Determination of stabilityEN ISO 23999≤ 0.15%
CurlingEN ISO 23999≤ 1mm
Color fastnessEN ISO105-B026 class
Reaction to FireEN 13501-1Bf1-S1
Castor Chair ResistanceEN 425Pass
Peeling strength of layerEN431>= 95N/5cm
Locking strengthISO 24334Long-side: >=150N/5cm
Short-side: >=150N/5cm
ClassificationEN685Class 23 for residential
Class 32for commercial
Stain ResistanceEN423Not affected
Slip ResistanceDIN51130Class R9
Residual IndentationISO24343-1:2007≤0.1mm
Chemical Products ResistanceEN423Pass
Ortho-PhthalatesUS EPA 3550c:2007None
PCPEN 12673None
Formaldehyde EmissionEN717-1E1

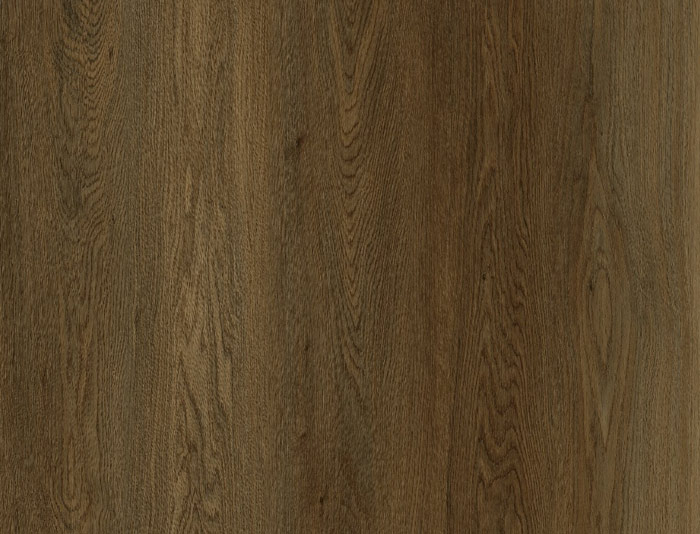

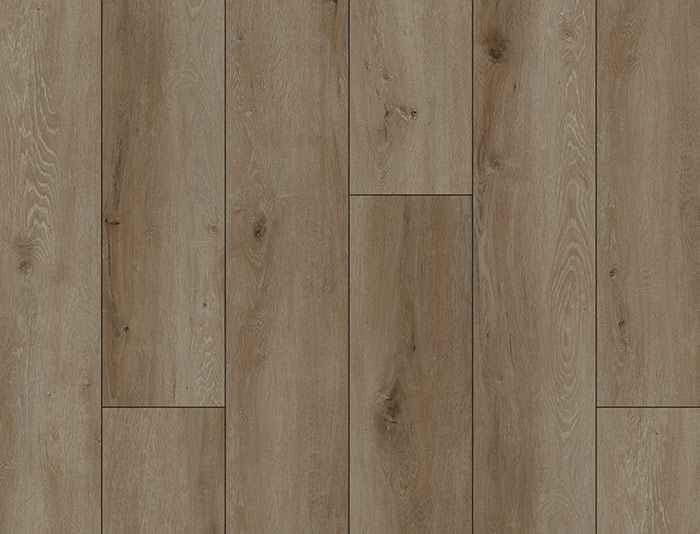

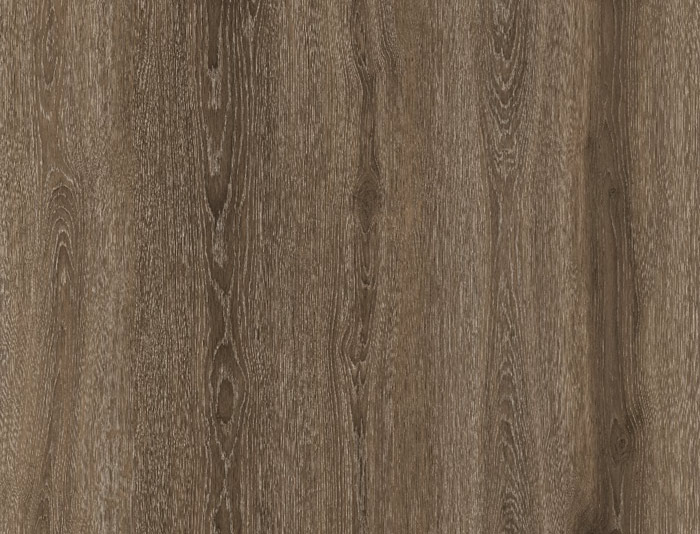

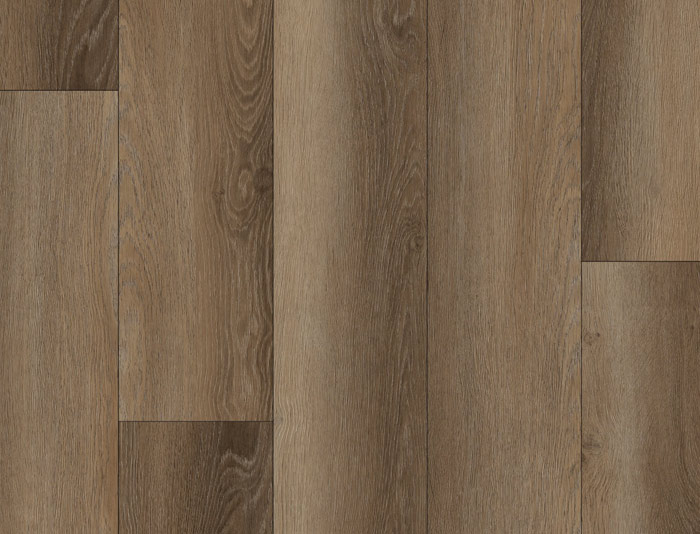

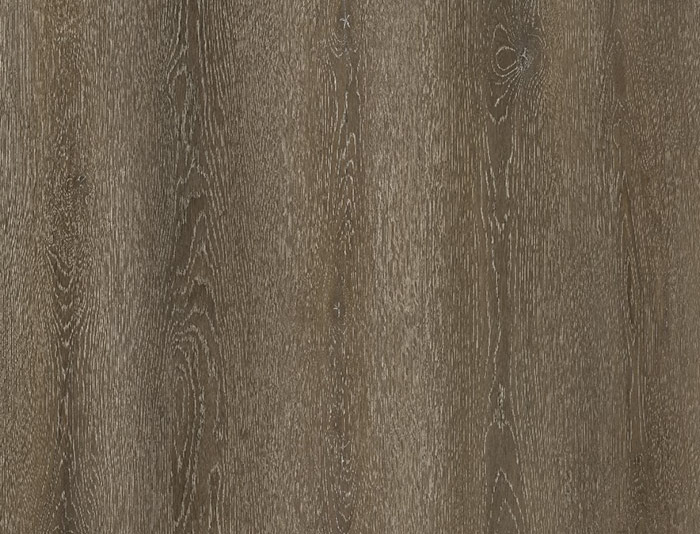

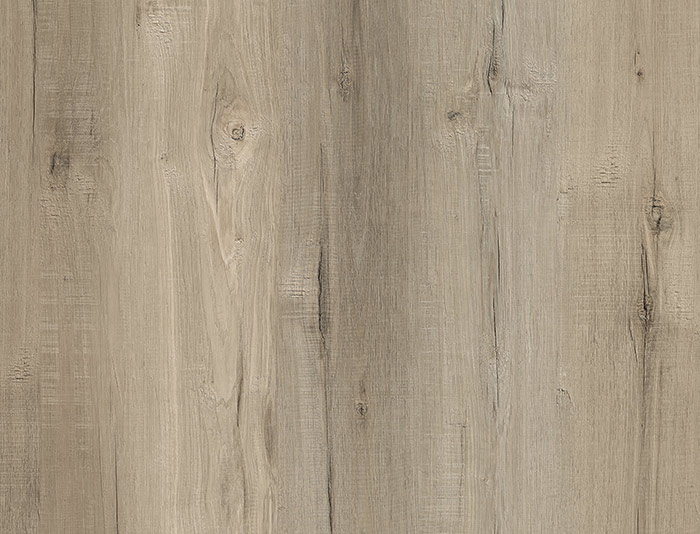

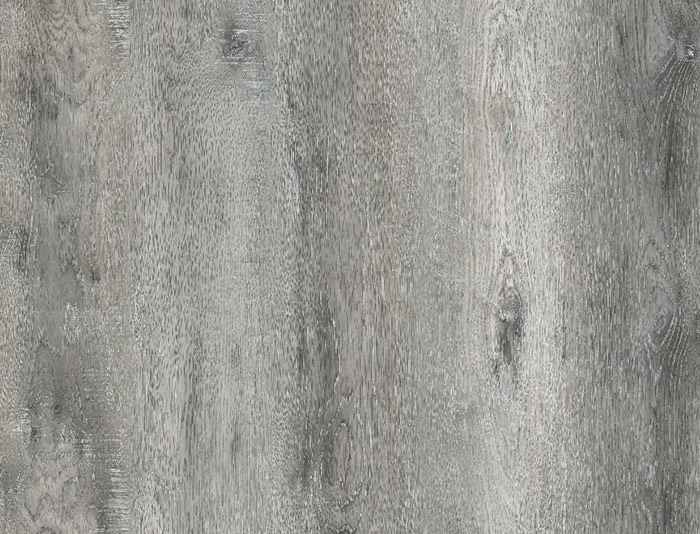

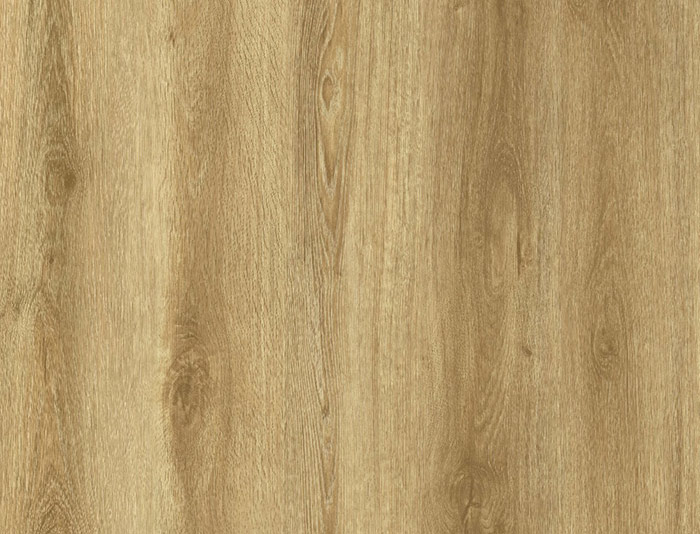

  • SHG-7601


  • SHG-7602


  • SHG-7603


  • SHG-7604


  • SHG-7605


  • SHG-7606


  • SHG-7607


  • SHG-7608
