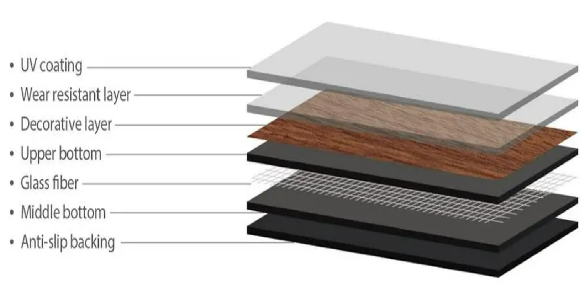

LVT Click Structure
Technical Data
| Product information | SPC/LVT click | |
| Material | 100% virgin PVC+Calcium calcite powder | |
| Plank Size | ||
| Planks/Box | ||
| Density | 2100kg/m3 | |
| Weight/m2 | ||
| Sq.m/Box | ||
| Finish | UV Coating, gloss 6-8 | |
| Emboss | Deep embossed | |
| Installation | Click system | |
| Locking System | Välinge 5Gi/2G | |
| Bevel | Four-sided bevel | |
| Maximum installation area | 10 x 10 m | |
| Floor heating installation | Water/underfloor heating ok, electric heating NOT ok. | |
| Warranty | **years residential/** years commercial (with good maintain) | |
| UNDERLAYMENT INFORMATION | ||
| Material | IXPE/EVA/Cork | |
| Overall Thickness | 1.5/1mm (+/- 0.1, unstressed) | |
| REFERENCE | NORMS | RESULT |
| Tolerance of Length | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance of Width | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance on the squareness | EN ISO 24342 | side length≤400mm, squareness≤0.25mm |
| side length﹥400mm, squareness≤0.35mm | ||
| Thickness | EN ISO 24346 | **mm (+/-0.15mm) |
| Wear Layer Thickness | EN ISO 24340 | **mm (+/-0.05mm) |
| Determination of stability | EN ISO 23999 | ≤ 0.15% |
| Curling | EN ISO 23999 | ≤ 1mm |
| Color fastness | EN ISO105-B02 | 6 class |
| Reaction to Fire | EN 13501-1 | Bf1-S1 |
| Castor Chair Resistance | EN 425 | Pass |
| Classification | EN685 | Class 23 for residential |
| Class 33for commercial | ||
| Stain Resistance | EN423 | Not affected |
| VOC | ISO 16000 | VOC A+ |
| Slip Resistance | DIN51130 | Class R9 |
| Residual Indentation | ISO24343-1:2007 | ≤0.1mm |
| Chemical Products Resistance | EN423 | Pass |
| Ortho-Phthalates | US EPA 3550c:2007 | None |
| PCP | EN 12673 | None |
| Formaldehyde Emission | EN717-1 | E1 |

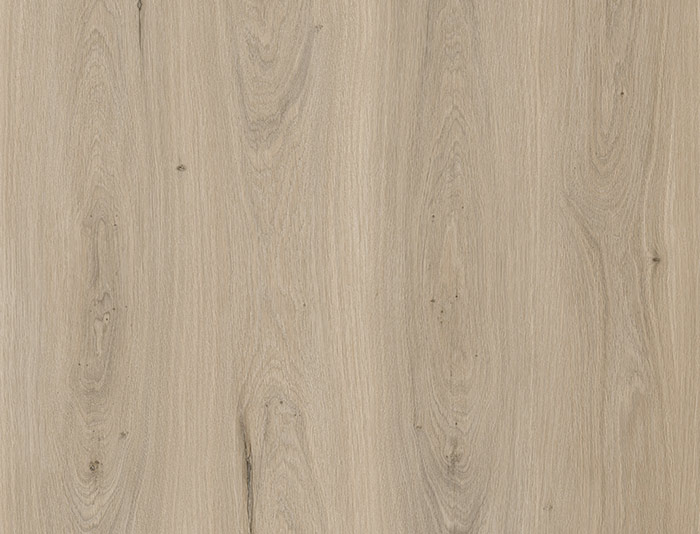

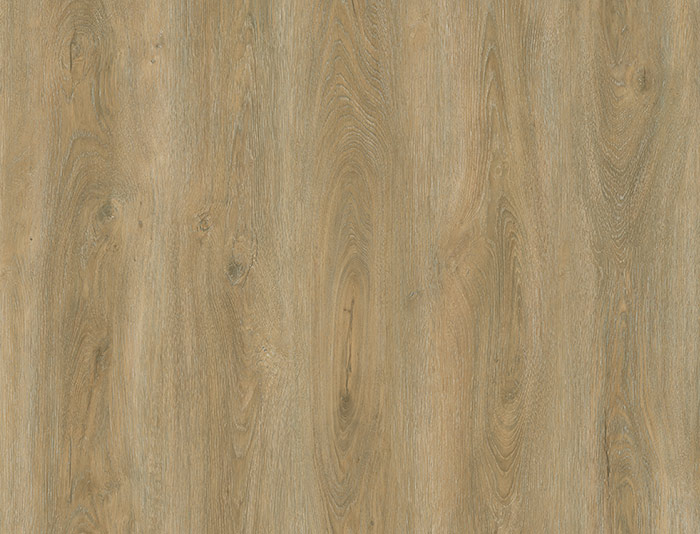

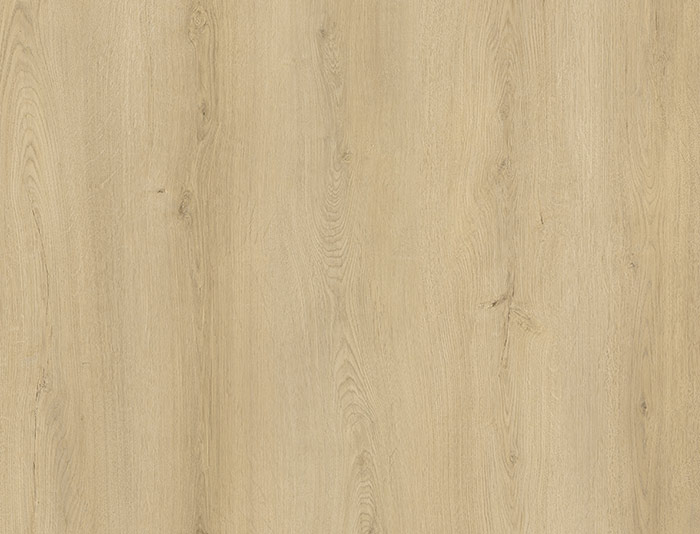

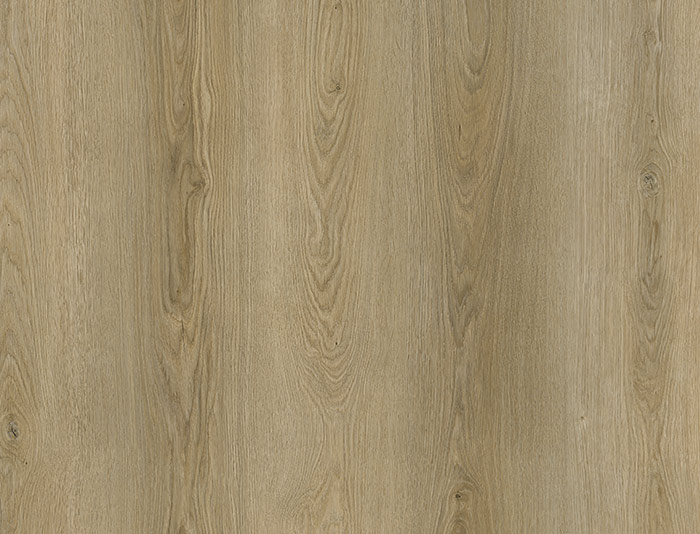

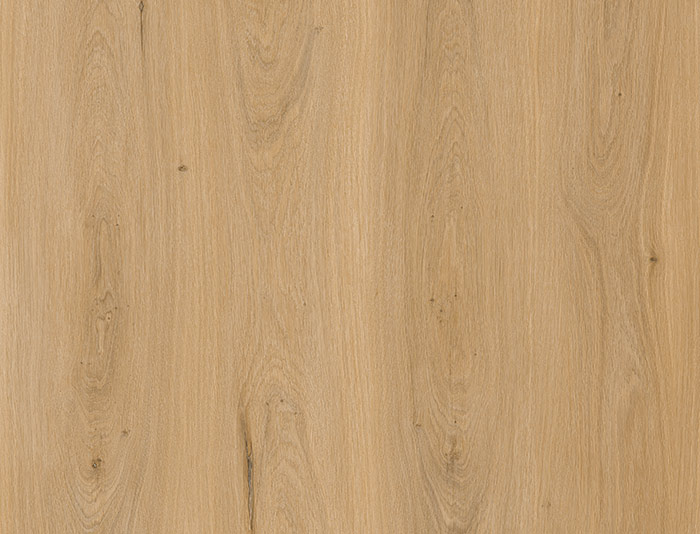

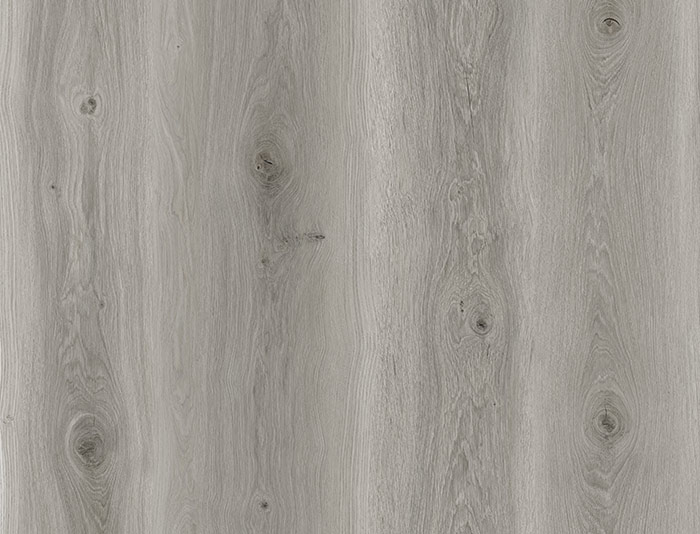

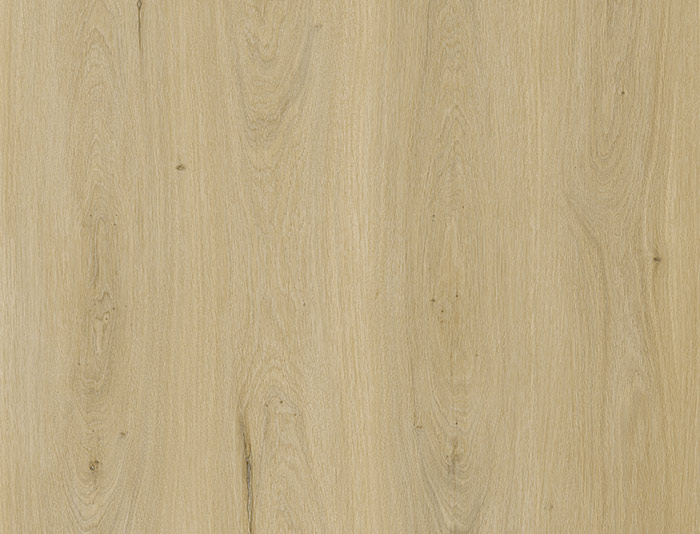

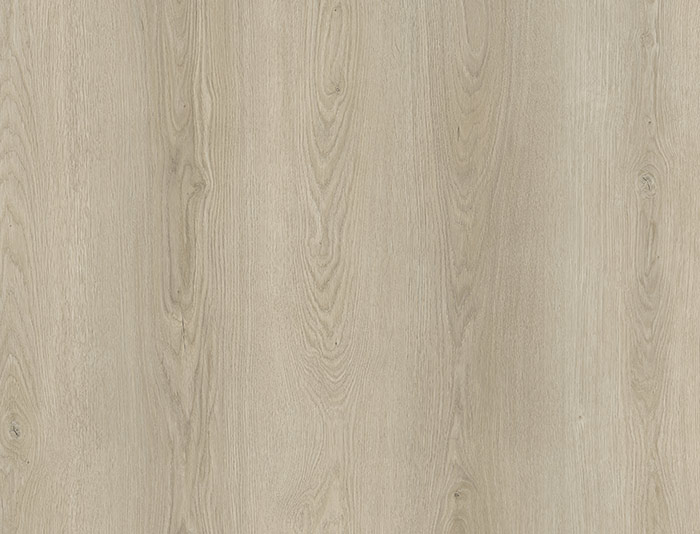

Color
TCC-2101
TCC-2102
TCC-2103
TCC-2104
TCC-2105
TCC-2106
TCC-2107
TCC-2108

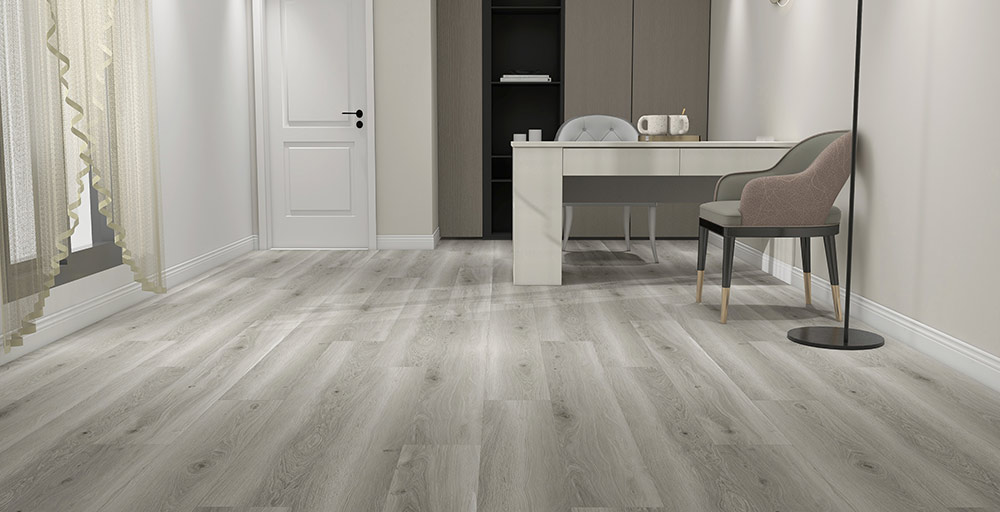

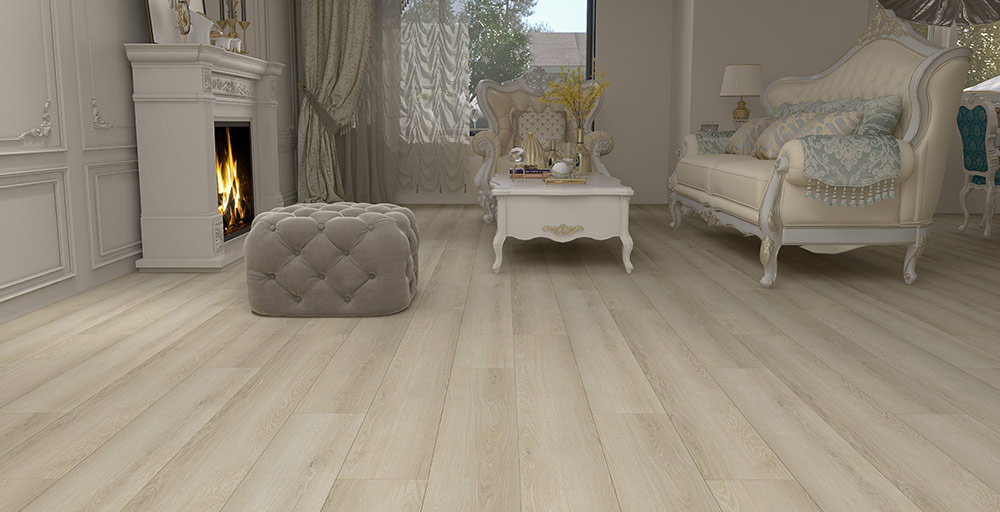

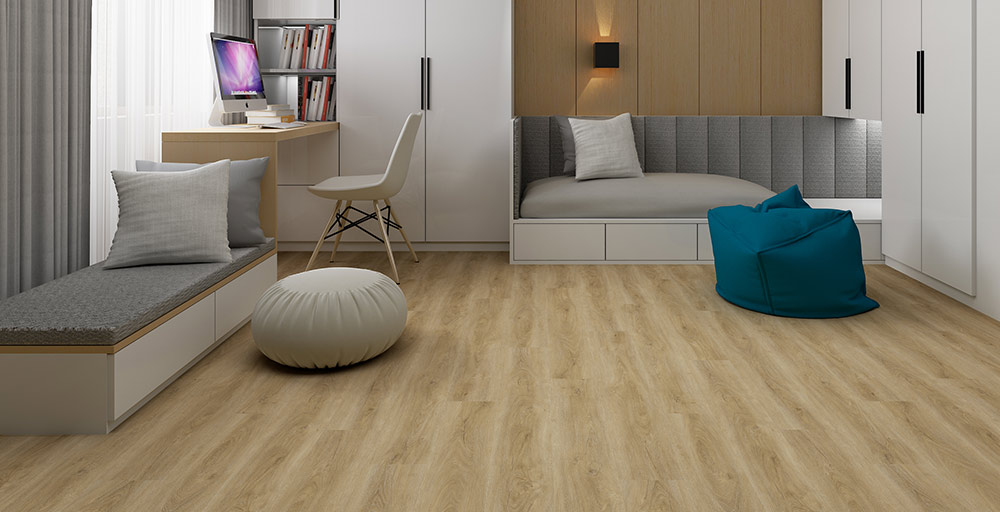

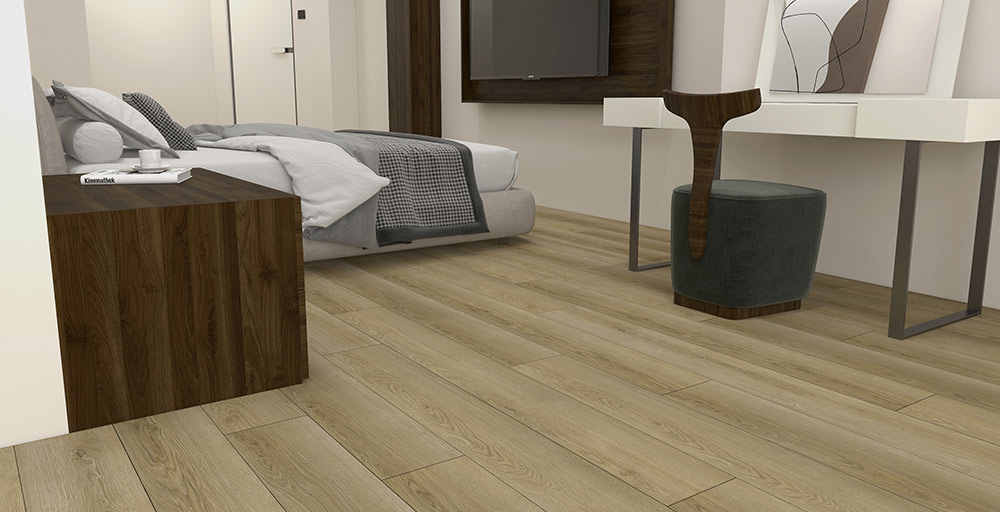

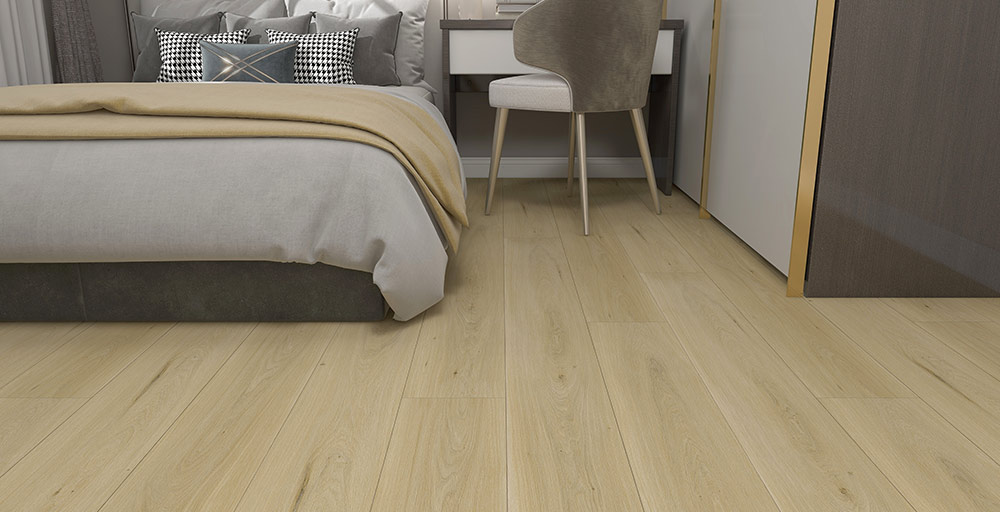

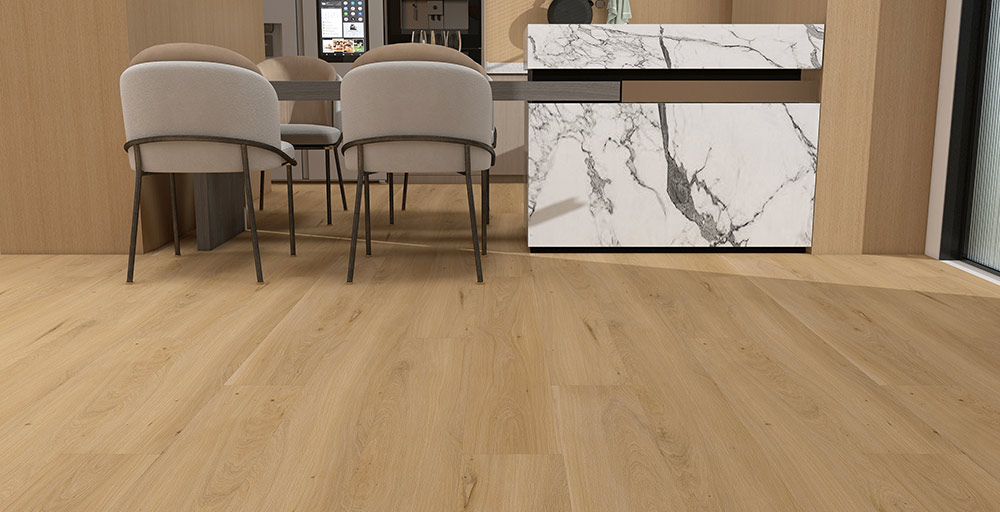

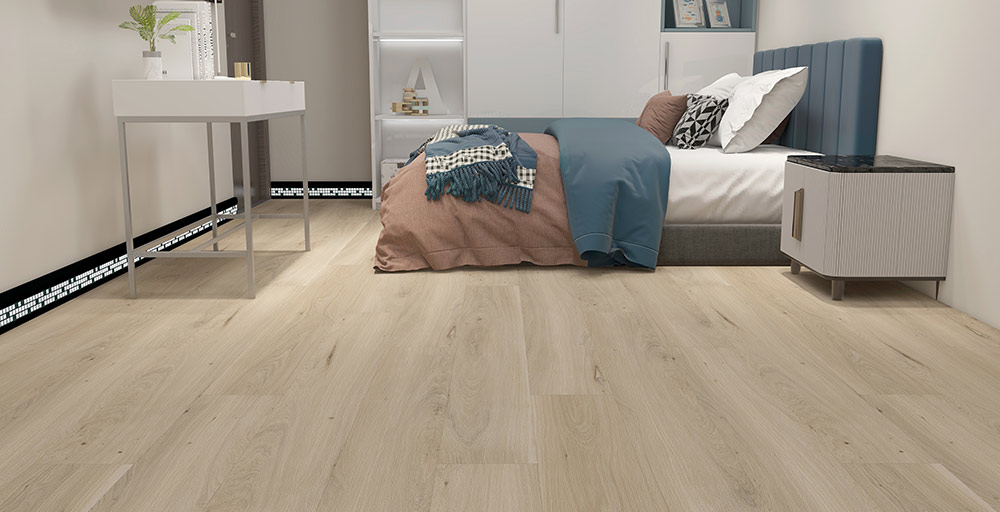

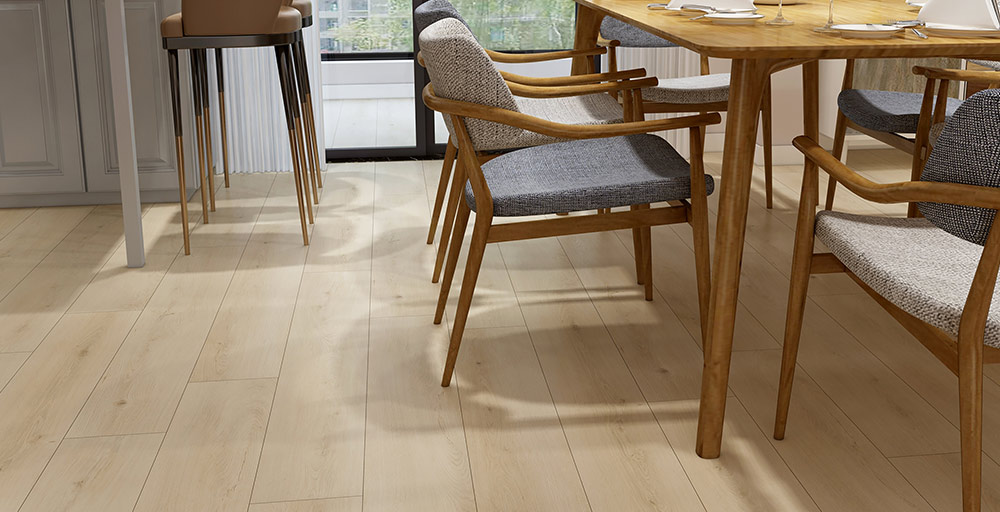

SPC floors come in a variety of colors and patterns, including wood/marble/carpet patterns, so it's easy to find the right style for your business and project.
100% Waterproof
Acoustic Comfort
Antibacterial
Anti Scratch
Easy Clean
Eco Friendly
Extreme Stability
Fireproof
Hard Wearing
Pet Free
