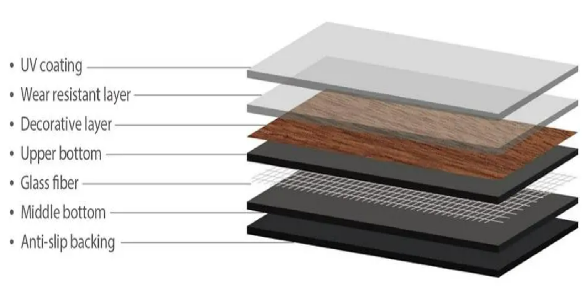

Loose Lay Structure
Technical Data
| Product information | LVT Loose Lay | |
| Material | 100% virgin PVC+Calcium calcite powder | |
| Plank Size | 609.6x609.6mm | |
| Density | 1850kg/m3 | |
| Weight/m2 | 9.25KG | |
| Fiber Glass | Included | |
| Finish | UV Coating, Matt UV 5-7 degree | |
| Emboss | Leather embossed | |
| Installation | Loose Lay | |
| Floor heating installation | Only for underfloor heating. | |
| REFERENCE | NORMS | RESULT |
| Tolerance of Length | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance of Width | EN ISO 24342 | ≤0.10% , up to 0.5mm maximum |
| Tolerance on the squareness | EN ISO 24342 | side length≤400mm, squareness≤0.25mm |
| side length﹥400mm, squareness≤0.35mm | ||
| Thickness | EN ISO 24346 | 5.0 mm (+/-0.15mm) |
| Wear Layer Thickness | EN ISO 24340 | 0.7 mm (+/-0.05mm) |
| Determination of stability | EN ISO 23999 | ≤0.25% |
| Curling | EN ISO 23999 | ≤2mm |
| Color fastness | EN ISO105-B02 | 6 class |
| Reaction to Fire | EN 13501-1 | Bf1-S1 |
| Castor Chair Resistance | EN 425 | Pass |
| Classification | EN685 | Class 23 for residential |
| Class 34 for commercial | ||
| Class 43 for Industrial | ||
| Stain Resistance | EN423 | Not affected |
| VOC | ISO 16000 | VOC A+ |
| Slip Resistance | DIN51130 | Class R9 |
| Residual Indentation | ISO24343-1:2007 | ≤0.1mm |
| Chemical Products Resistance | EN423 | Pass |
| Ortho-Phthalates | US EPA 3550c:2007 | None |
| PCP | EN 12673 | None |
| Formaldehyde Emission | EN717-1 | E1 |

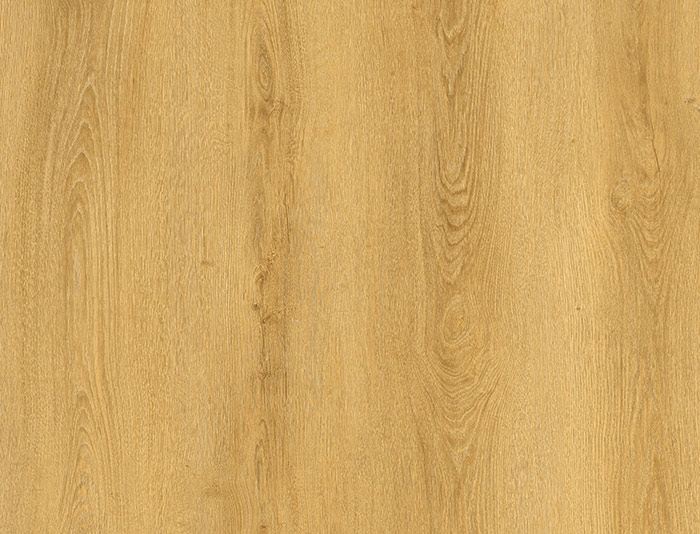

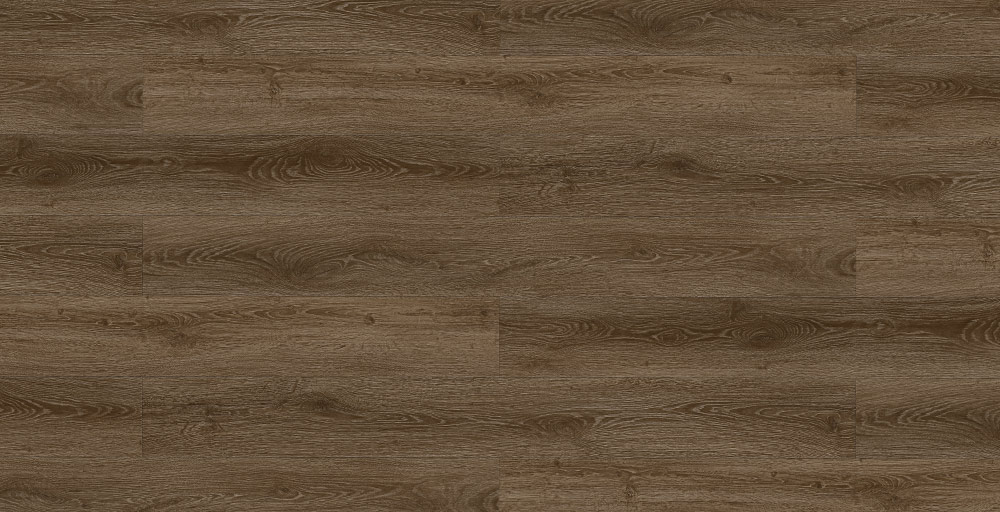

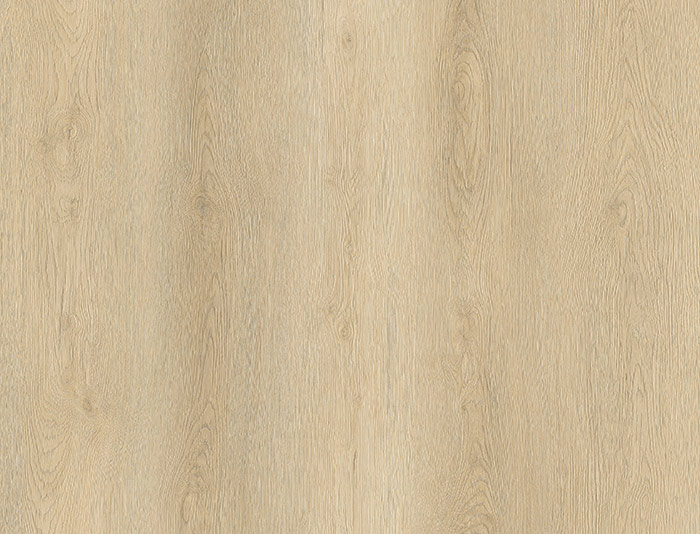

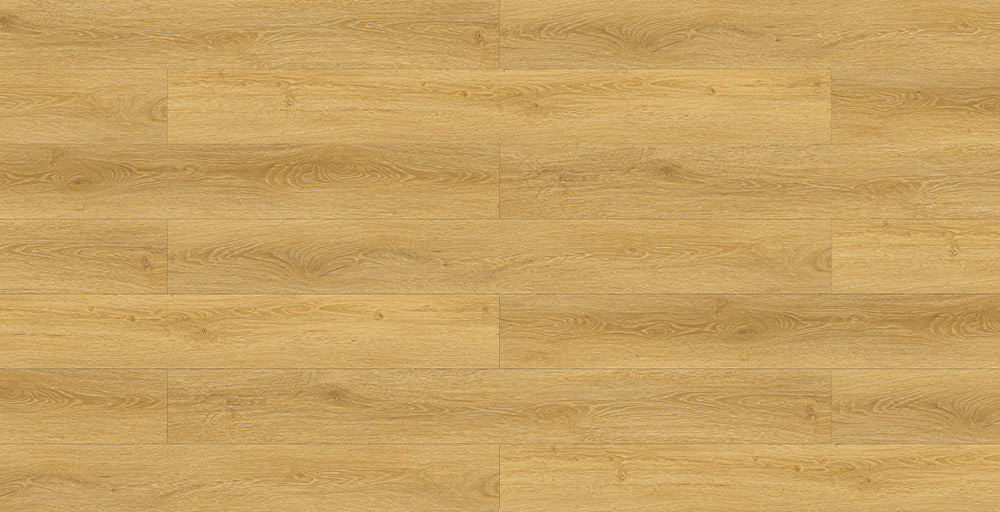

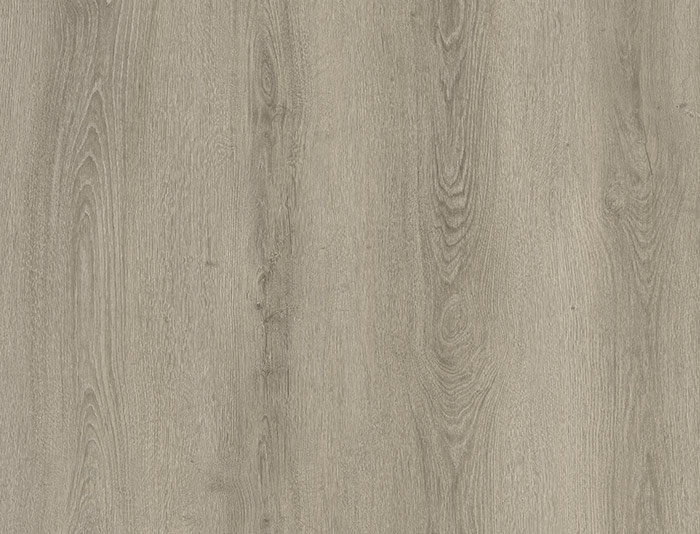

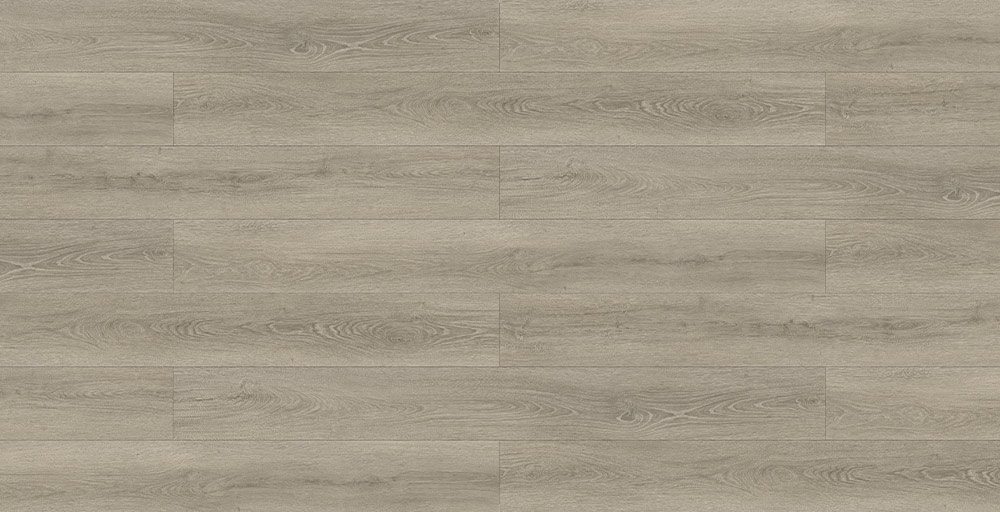

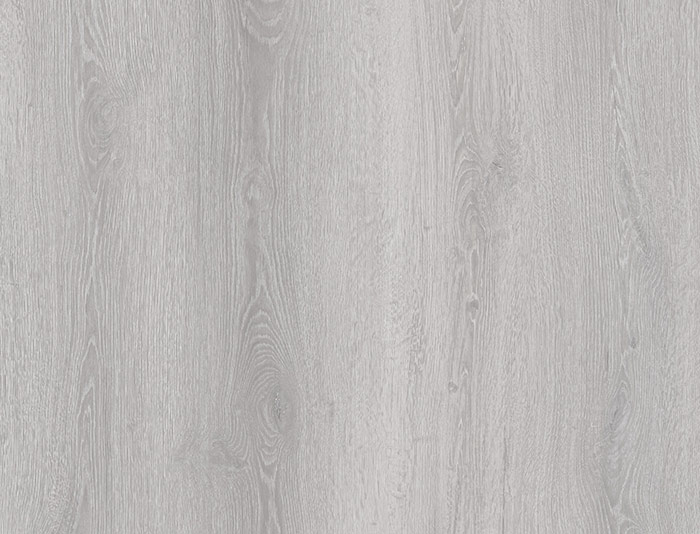

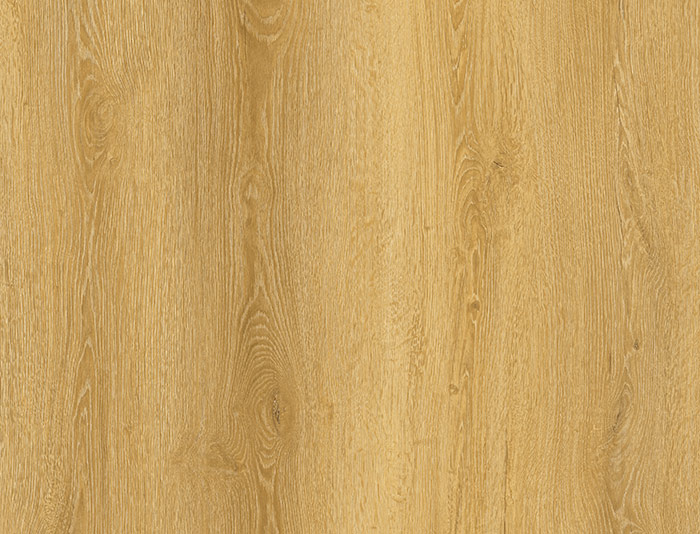

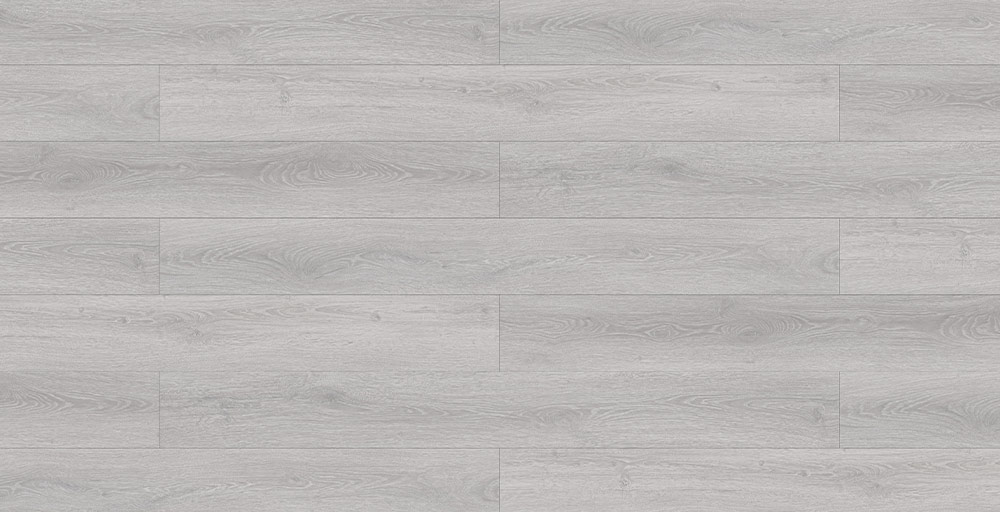

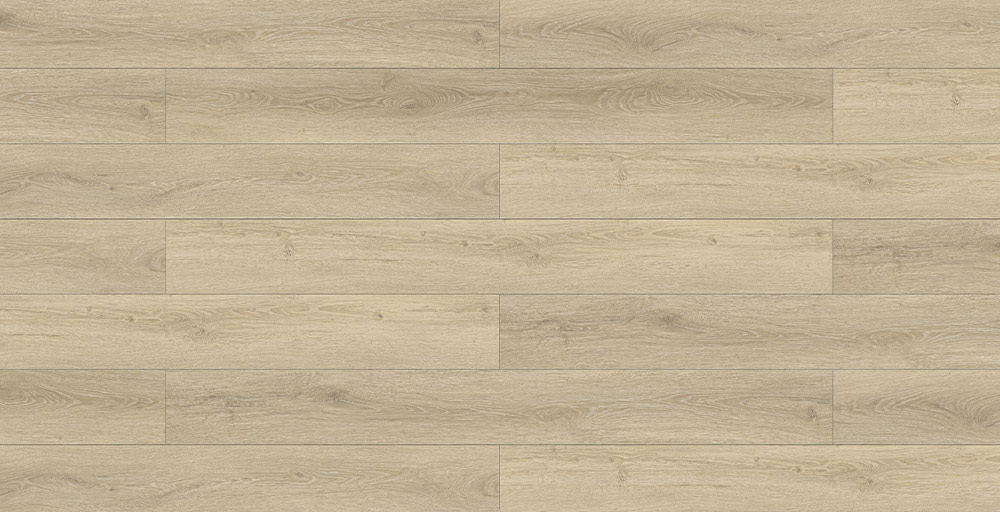

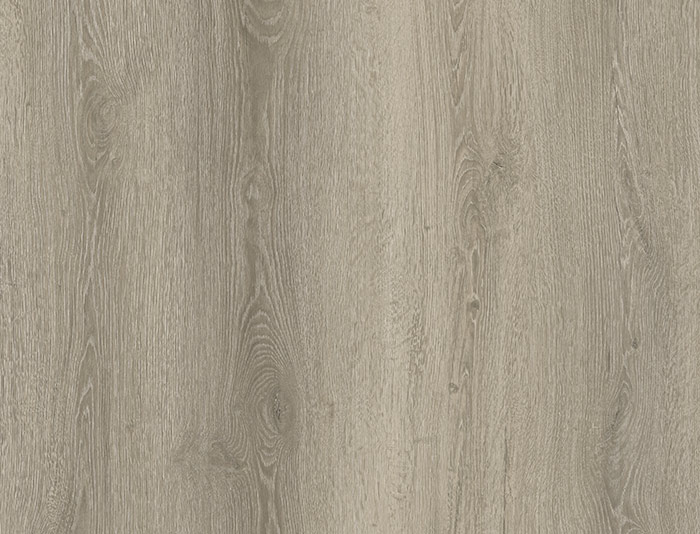

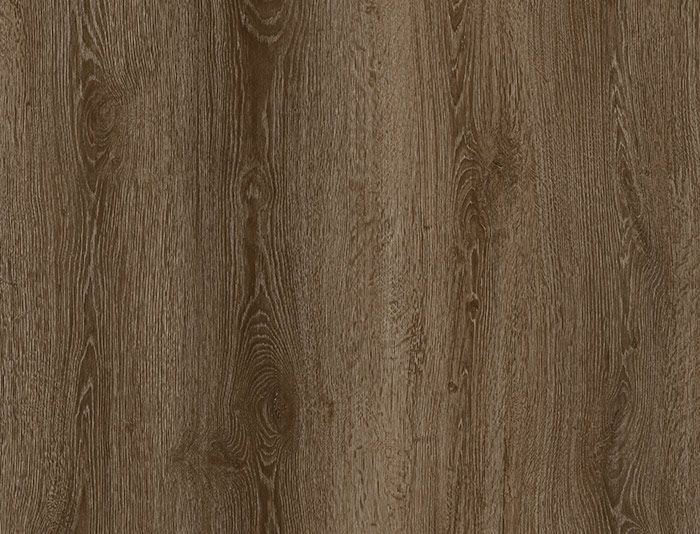

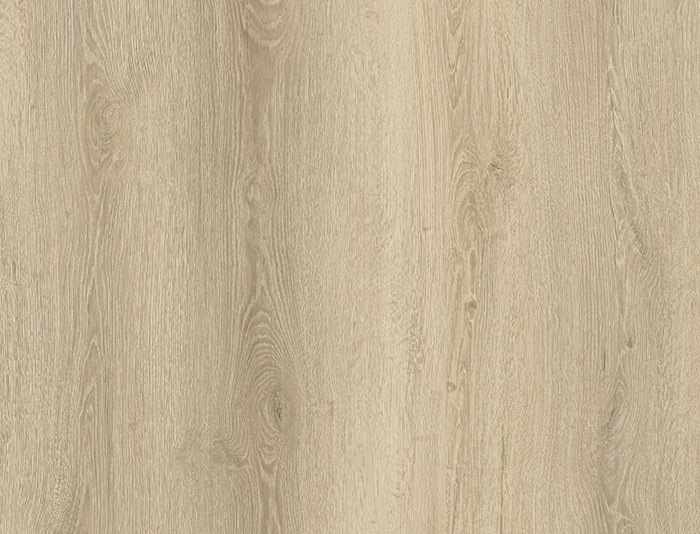

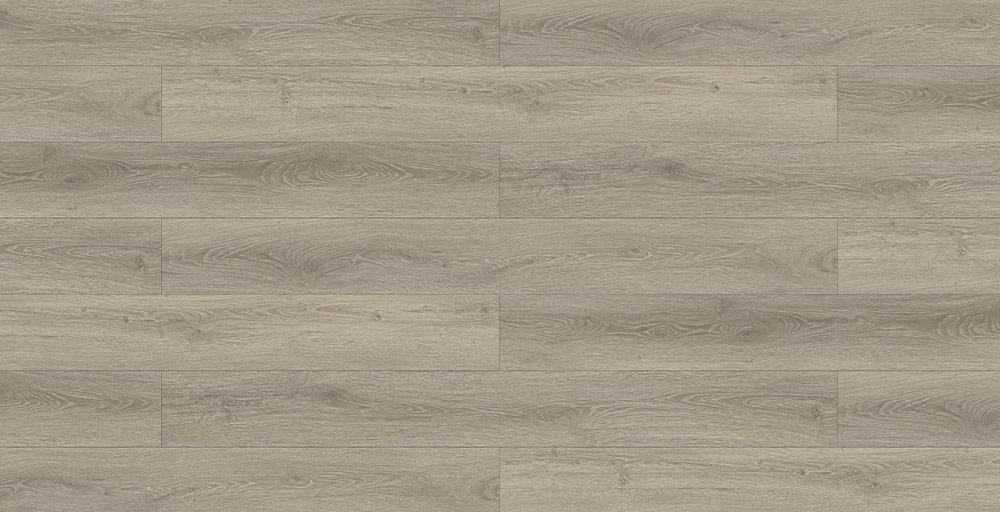

Color
TCL-2501
TCL-2502
TCL-2503
TCL-2504
TCL-2505
TCL-2506
TCL-2507
TCL-2508
SPC floors come in a variety of colors and patterns, including wood/marble/carpet patterns, so it's easy to find the right style for your business and project.
100% Waterproof
Acoustic Comfort
Antibacterial
Anti Scratch
Easy Clean
Eco Friendly
Extreme Stability
Fireproof
Hard Wearing
Pet Free
