DESCRIPTION

Heterogeneous Flooring

Heterogeneous vinyl flooring is a multi-layer vinyl whose printed top layer provides unlimited design possibilities, long-lasting performance and low maintenance costs. Our heterogeneous vinyl flooring can be applied to almost all application areas, and we provide specialized heterogeneous flooring series and customized services.

Trioflor Heterogeneous flooring includes various kinds of colors and patterns, suitable for different scenes and occasions.

Excellent durability and wear resistance to heavy traffic and abrasion, adopting the thick wear layer and special UV coating.

No need for initial polishing with UV coating. Excellent stain resistance and easy cleaning: adopting the special UV coating.

Sanitized treatment with nano- silver technique: strong antibacterial function.

Dimensional stability: adopting spedal fiber glass layer.

PERFORMANCES AND BENEFITS

Heterogeneous Flooring

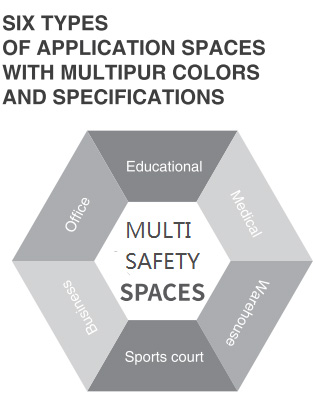

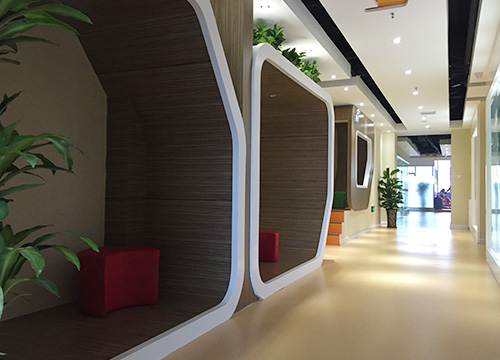

SIX TYPES OF APPLICATION SPACES WITH MULTIPUR COLORS AND SPECIFICATIONS

MULTI SAFETY SPACES

EDUCATIONAL

MEDICAL

WAREHOUSE

SPORTS COURT

BUSINESS

OFFICES


A NEW GENERATION OF ENVIRONMENTALLY FRIENDLY PLASTICIZERS

With the concept of health, safety and environmental protection, we will continue to optimize and improve the raw material formula of PVC flooring products. The products use the new generation of environmentally friendly palsticizer.

The only plasticizer in the industry that does not contain phthalate and endangers human health.

The only plasticizer in the industry that is suitable for both children`s toys and contact products.


LOWEST VOC RELEASE

TVOC is a general term for volatile organic compounds, mainly derived from the release of fuel explosive products and artifacts ( such as interior decoration material, paints, furniture, flooring, etc).

The TVOC release of the product is nearly zero, which is in the best level in the industry to ensure the optimal indoor air quality.

  • Clown fish"
  • Lion fish"
  • Jelly fish"
  • Yellow tang"
  • Thalassian"
  • Star rock"
  • Star wood"

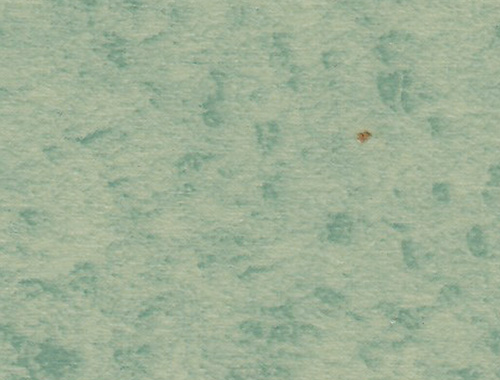

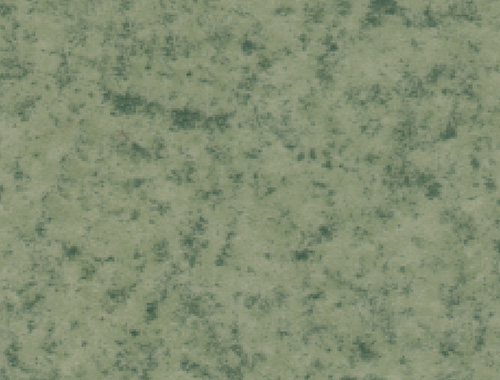

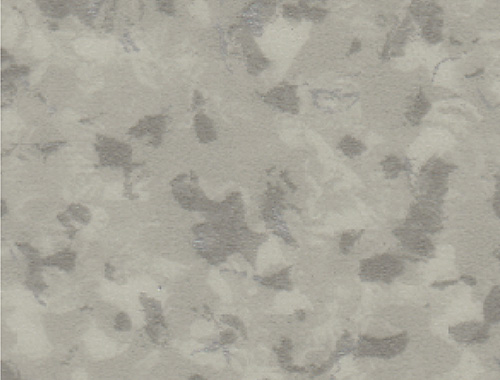

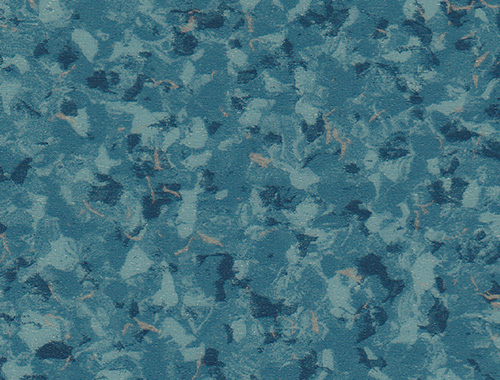

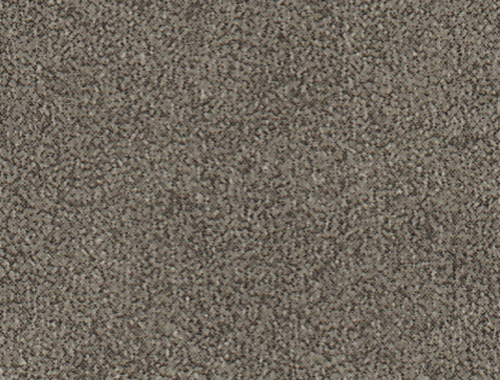

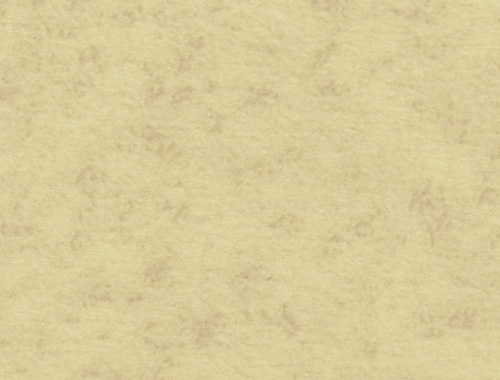

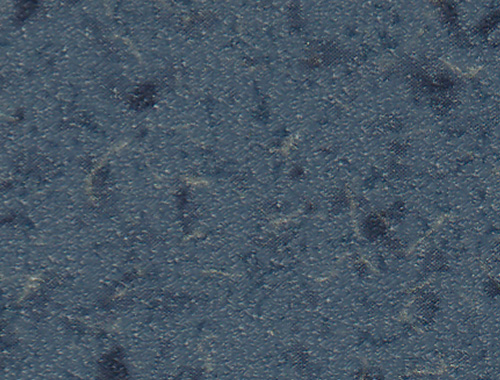

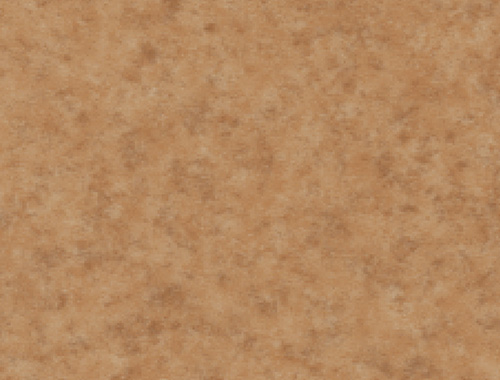

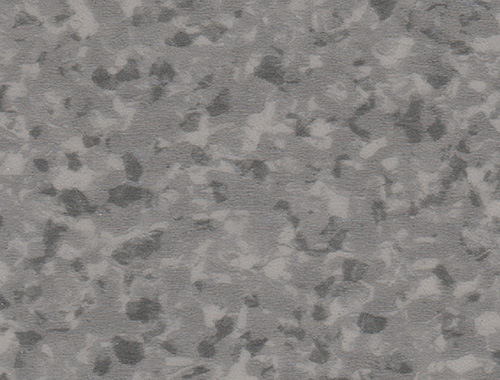

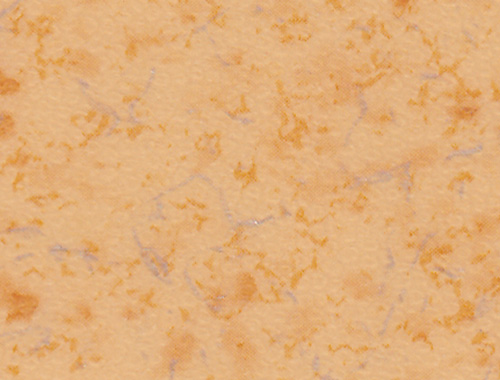

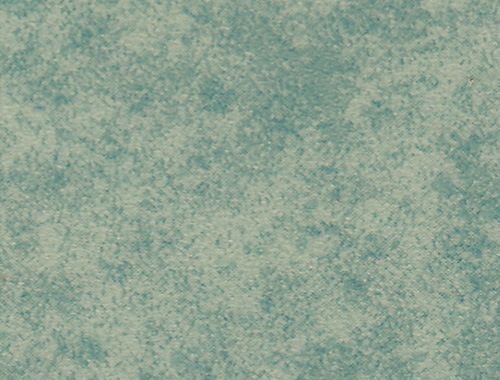

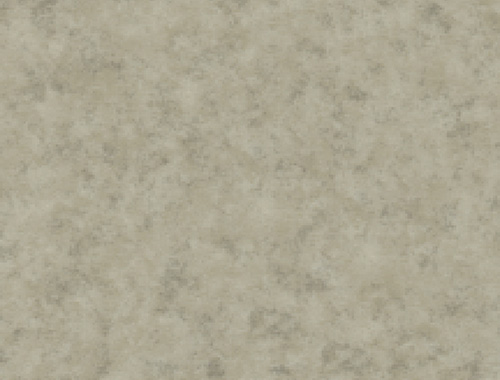

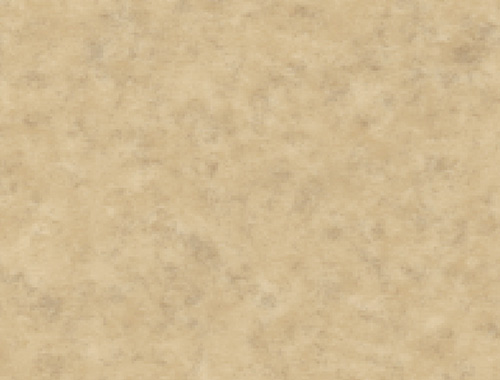

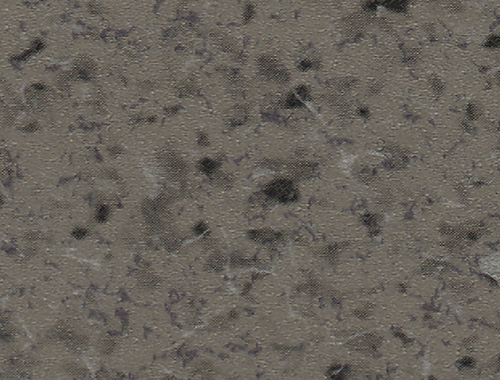

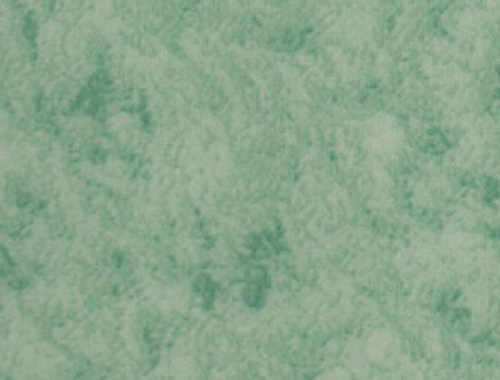

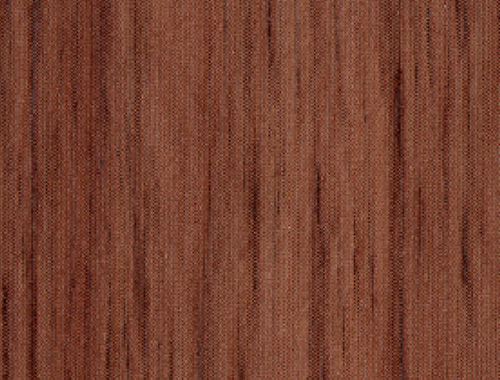

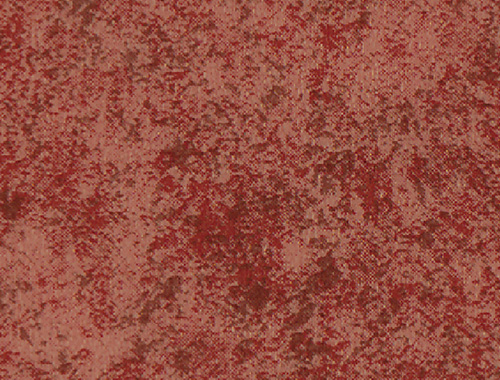

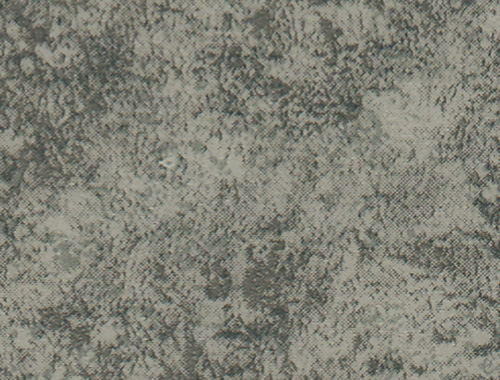

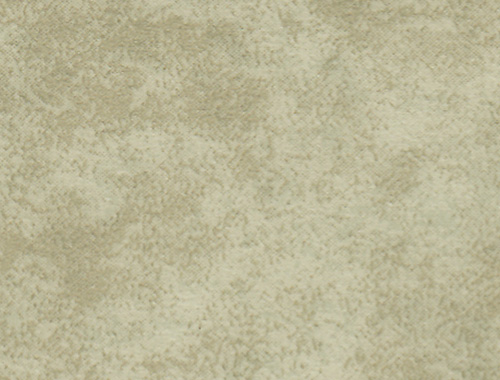

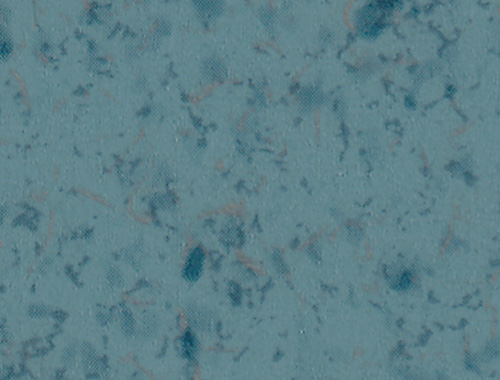

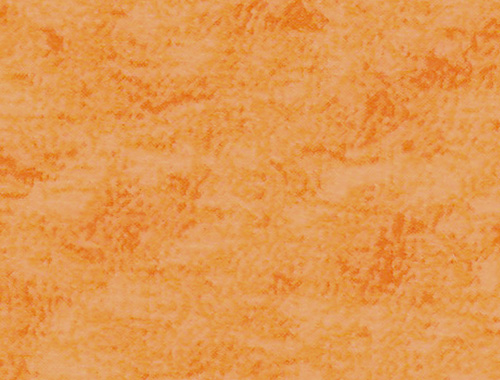

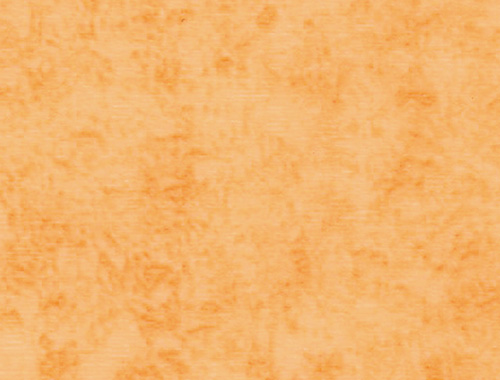

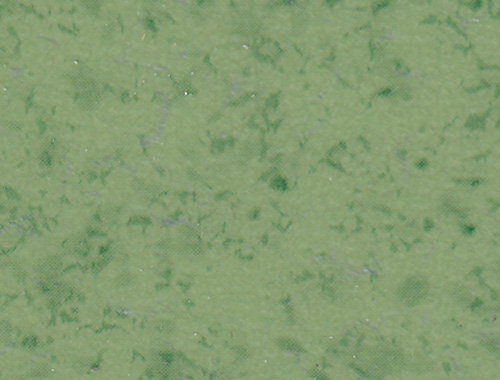

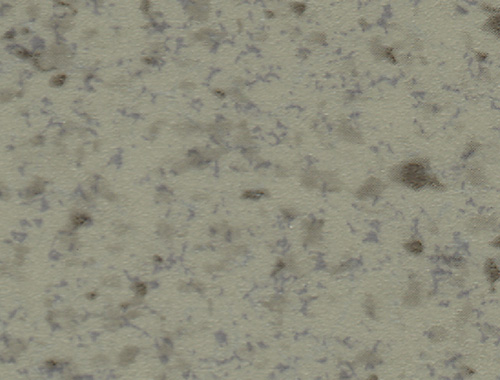

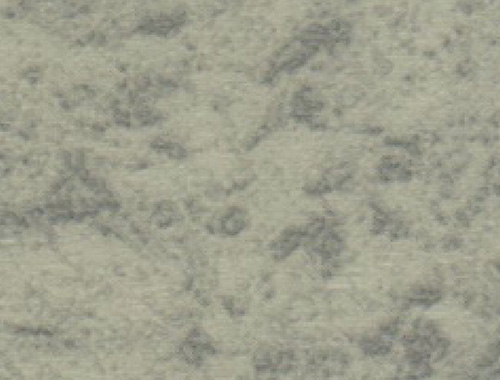

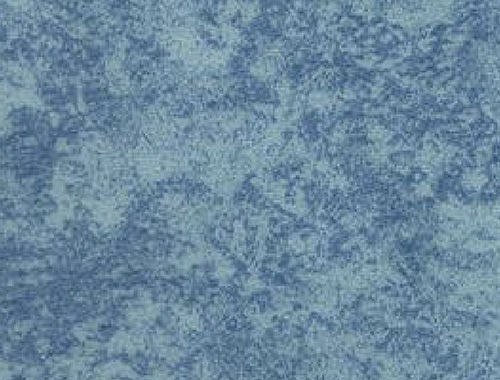

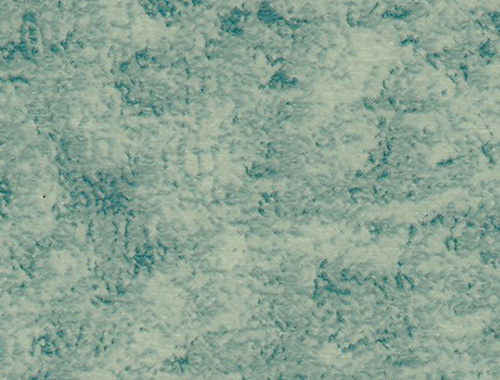

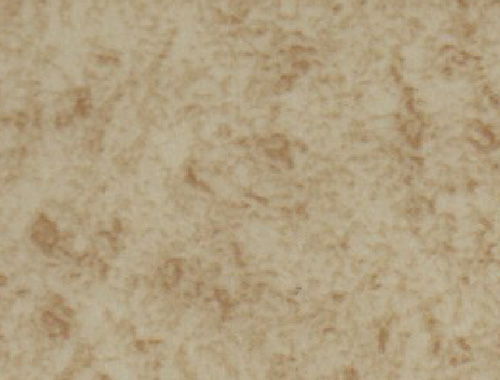

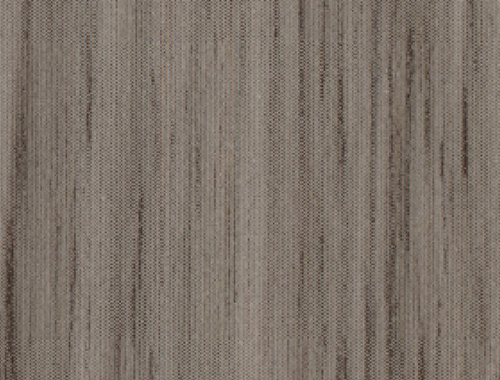

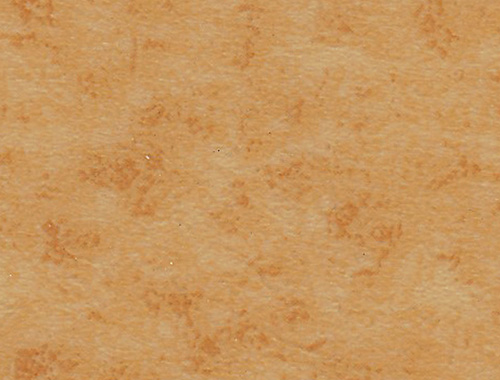

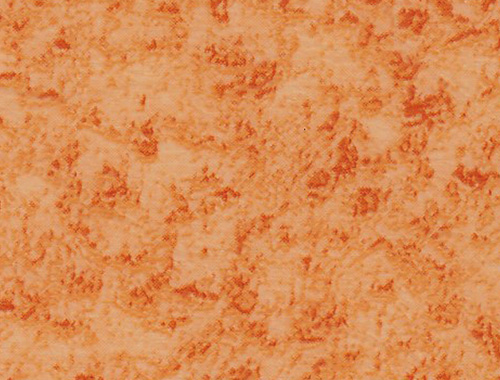

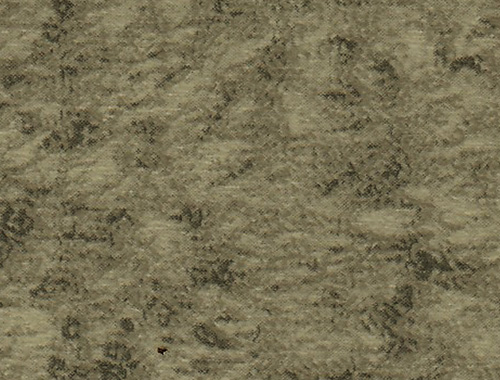

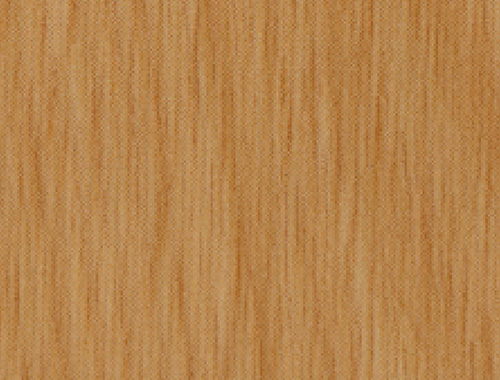

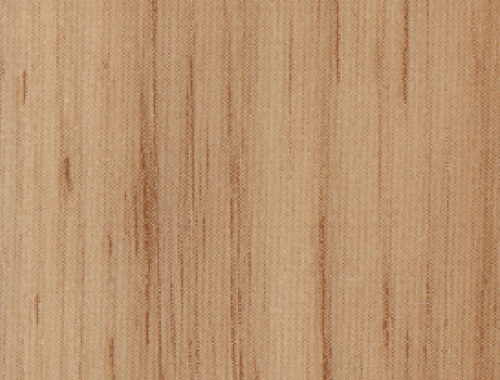

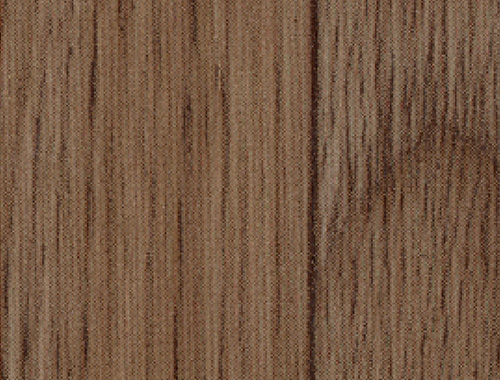

COLORS

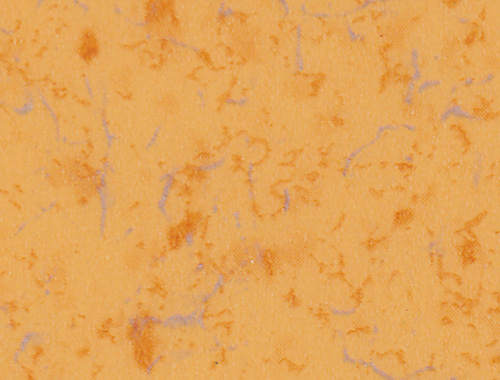

  • TF-1170

    TF-1170

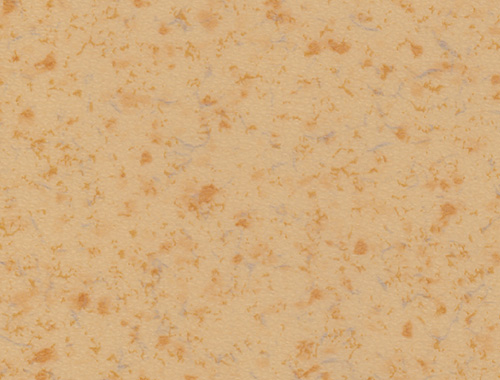

  • CF-1171

    CF-1171

  • TF-1172

    TF-1172

  • CF-1173

    CF-1173

  • TF-1174

    TF-1174

  • CF-1175

    CF-1175

  • TF-1176

    TF-1176

  • CF-1177

    CF-1177

  • TF-1178

    TF-1178

  • CF-1179

    CF-1179

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance

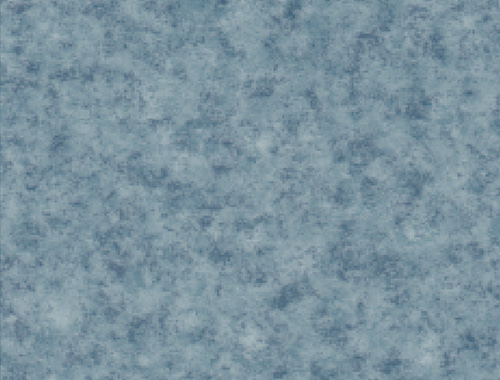

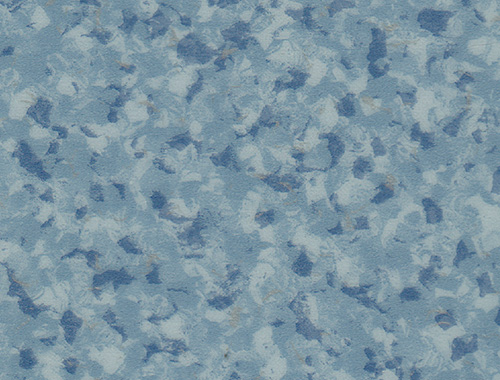

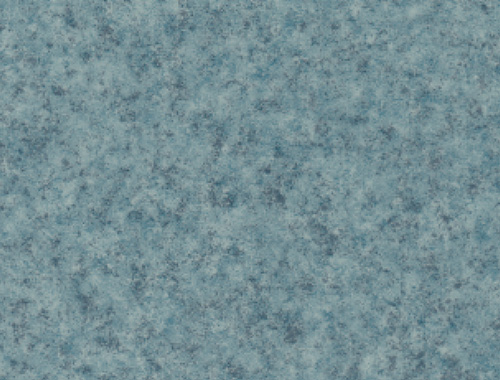

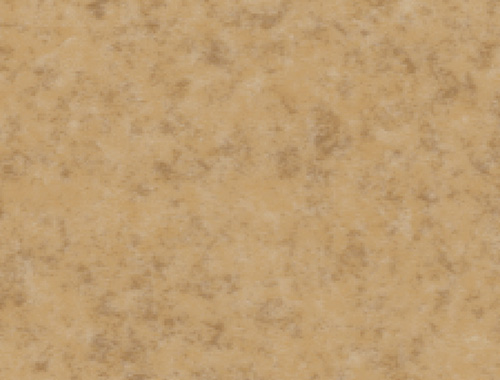

COLORS

  • LF-6801

    LF-6801

  • LF-6802

    LF-6802

  • LF-6803

    LF-6803

  • LF-6804

    LF-6804

  • LF-6805

    LF-6805

  • LF-6806

    LF-6806

  • LF-6807

    LF-6807

  • LF-6808

    LF-6808

  • LF-6809

    LF-6809

  • LF-6810

    LF-6810

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance

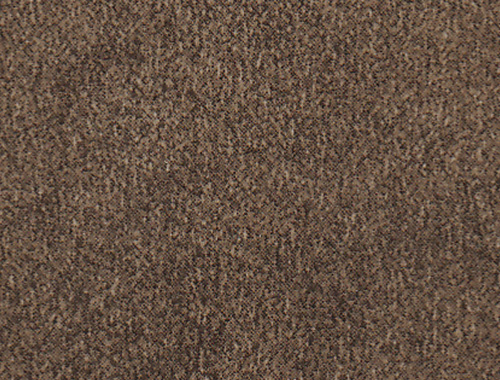

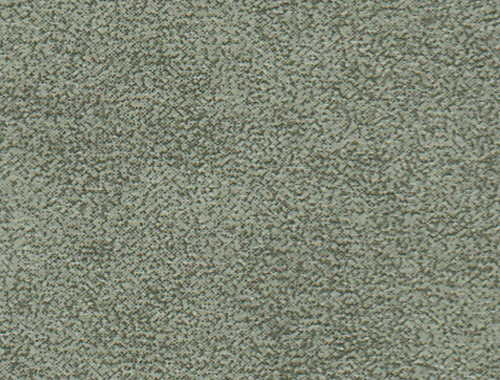

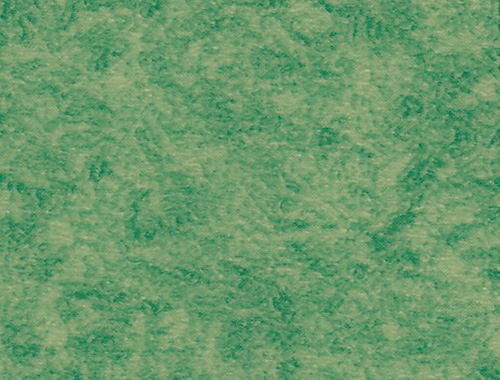

COLORS

  • JF-0930

    JF-0930

  • JF-0931

    JF-0931

  • JF-0932

    JF-0932

  • JF-0933

    JF-0933

  • JF-0934

    JF-0934

  • JF-0935

    JF-0935

  • JF-0936

    JF-0936

  • JF-0937

    JF-0937

  • JF-0938

    JF-0938

  • JF-0939

    JF-0939

  • JF-0940

    JF-0940

  • JF-0941

    JF-0941

  • JF-0942

    JF-0942

  • JF-0943

    JF-0943

  • JF-0944

    JF-0944

  • JF-0945

    JF-0945

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance

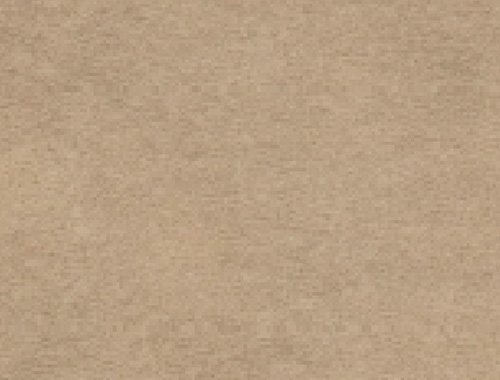

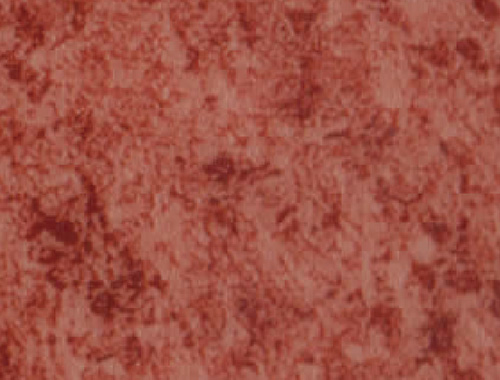

COLORS

  • YT-2001

    YT-2001

  • YT-2002

    YT-2002

  • YT-2003

    YT-2003

  • YT-2004

    YT-2004

  • YT-2005

    YT-2005

  • YT-2006

    YT-2006

  • YT-2007

    YT-2007

  • YT-2008

    YT-2008

  • YT-2009

    YT-2009

  • YT-2010

    YT-2010

  • YT-2011

    YT-2011

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance

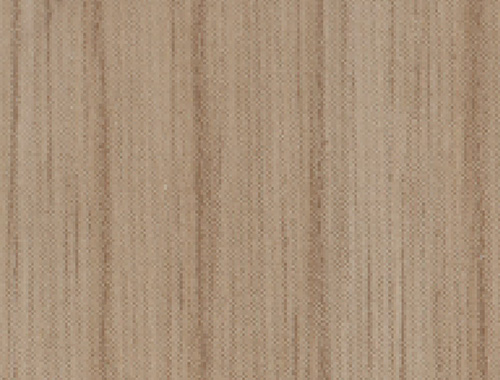

COLORS

  • T-2601

    T-2601

  • T-2602

    T-2602

  • T-2603

    T-2603

  • T-2604

    T-2604

  • T-2605

    T-2605

  • T-2606

    T-2606

  • T-2607

    T-2607

  • T-2608

    T-2608

  • T-2609

    T-2609

  • T-2610

    T-2610

  • T-2611

    T-2611

  • T-2612

    T-2612

  • T-2614

    T-2614

  • T-2615

    T-2615

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance

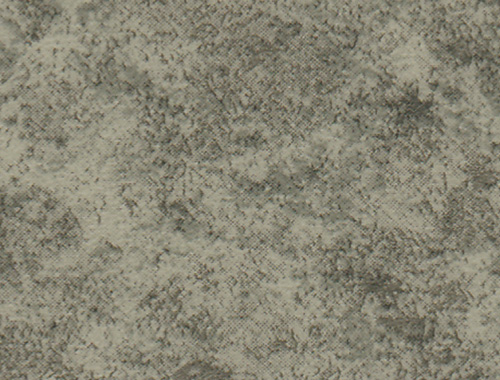

COLORS

  • SR-0801

    SR-0801

  • SR-0802

    SR-0802

  • SR-0803

    SR-0803

  • SR-0804

    SR-0804

  • SR-0805

    SR-0805

  • SR-0806

    SR-0806

  • SR-0807

    SR-0807

  • SR-0808

    SR-0808

  • SR-0809

    SR-0809

  • SR-0810

    SR-0810

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance

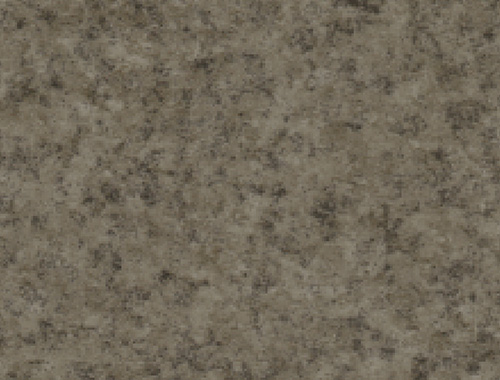

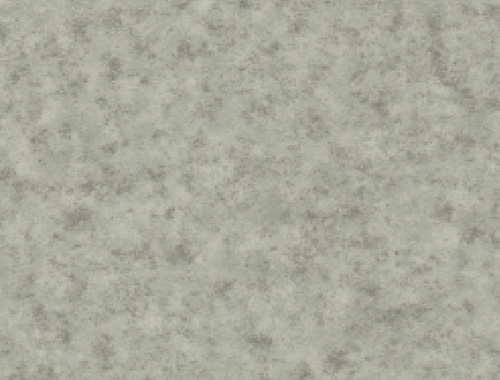

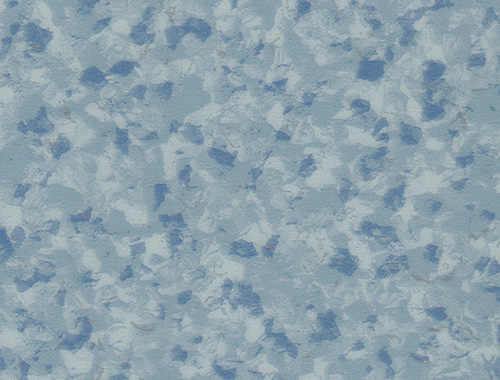

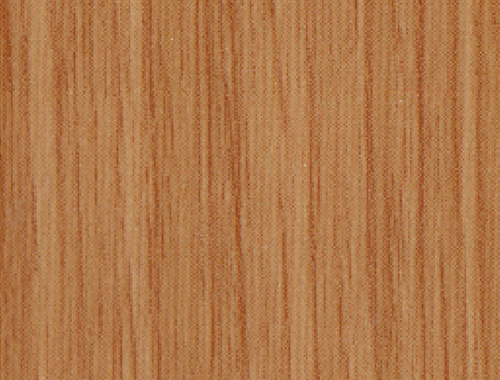

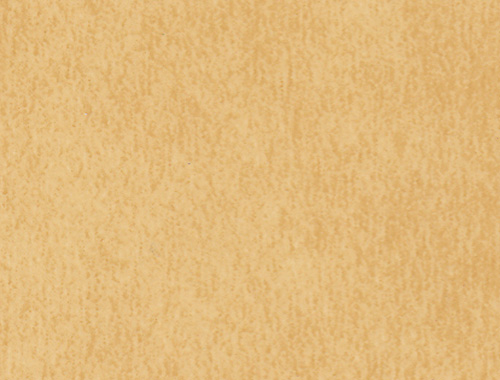

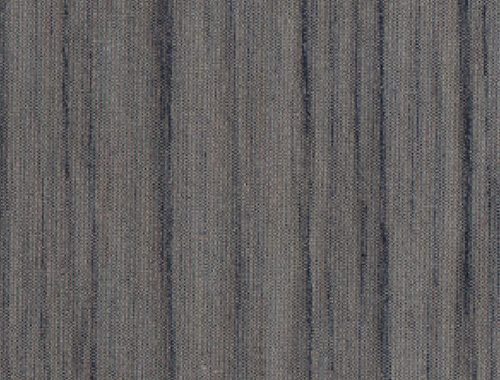

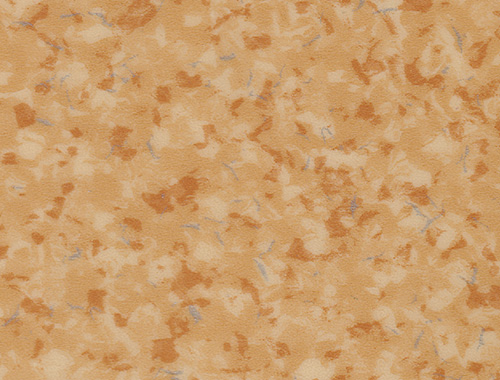

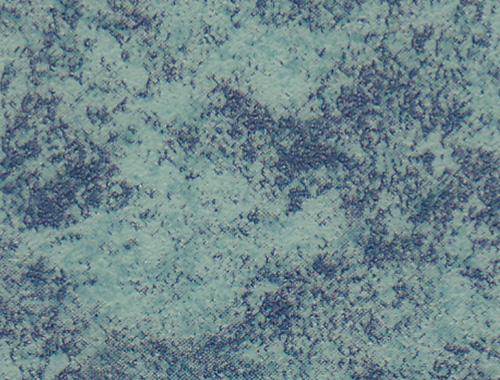

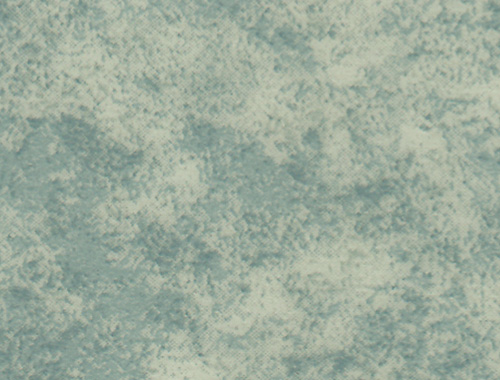

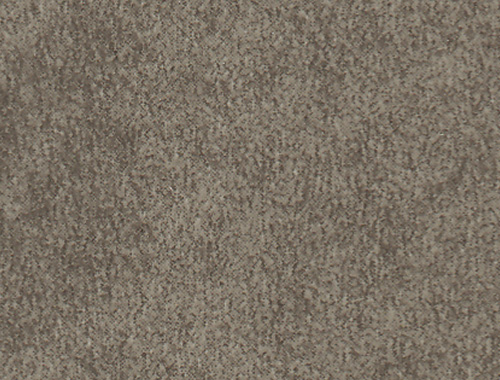

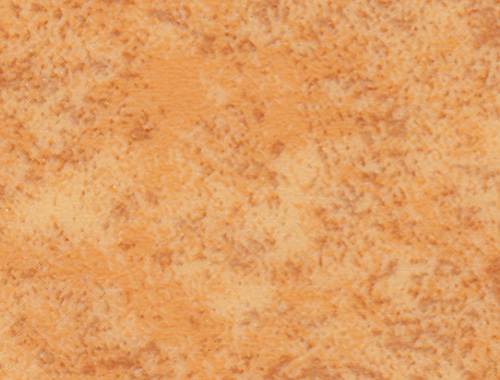

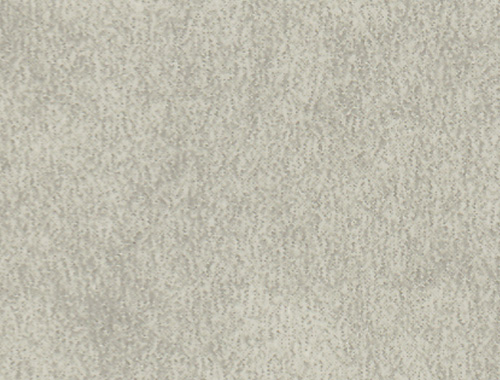

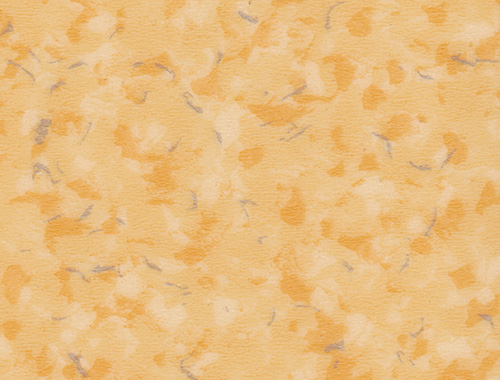

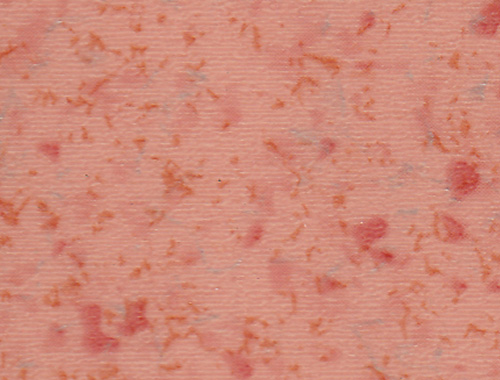

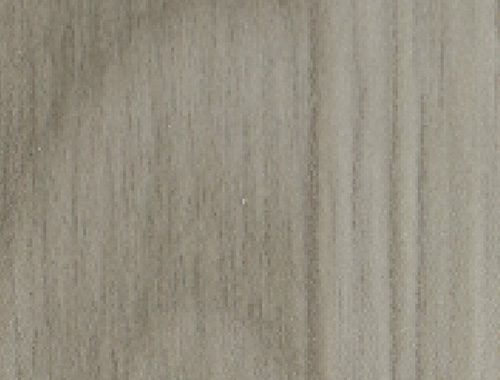

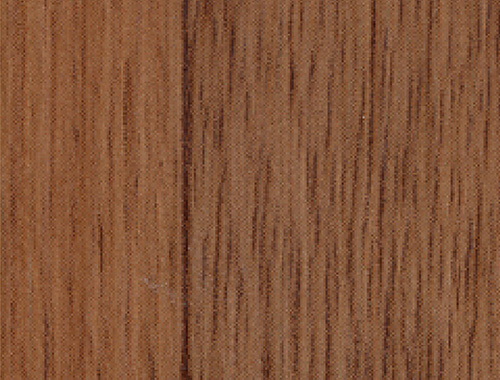

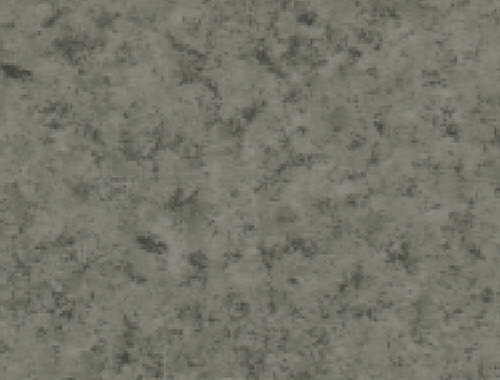

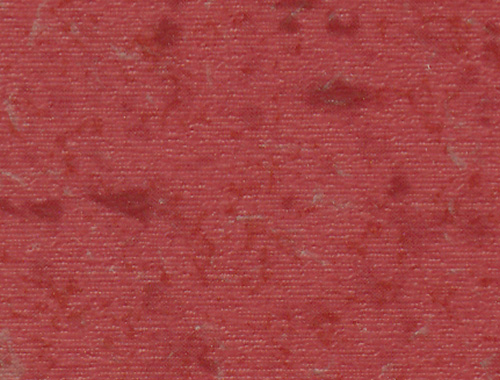

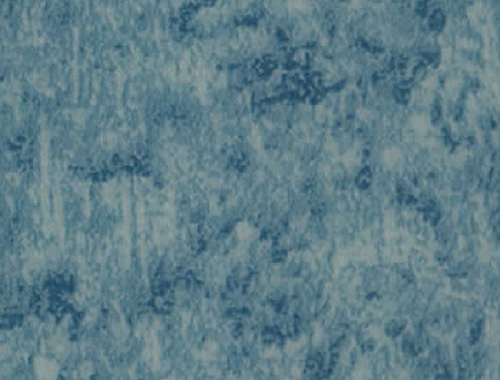

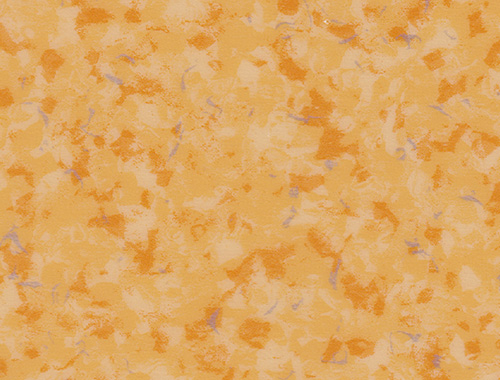

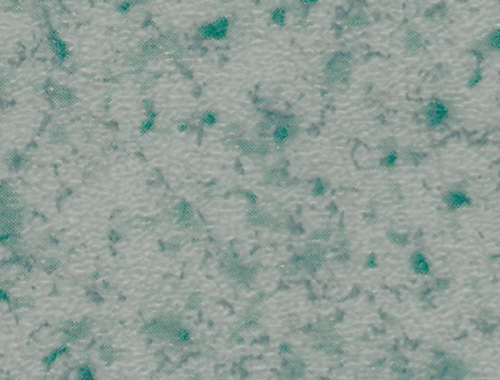

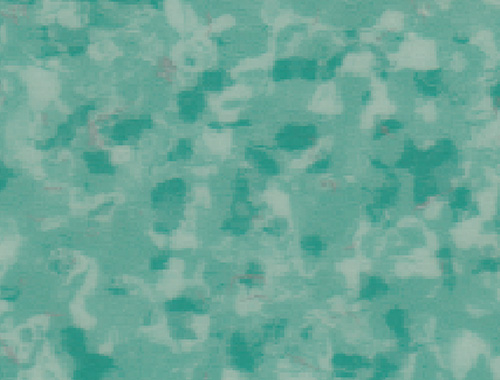

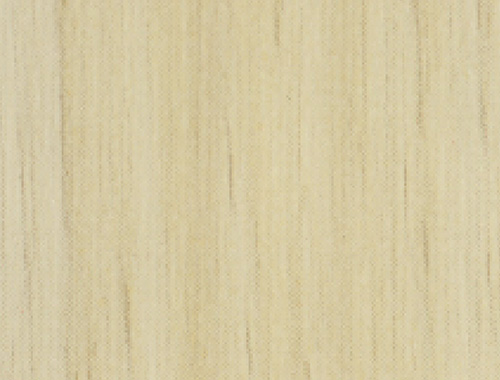

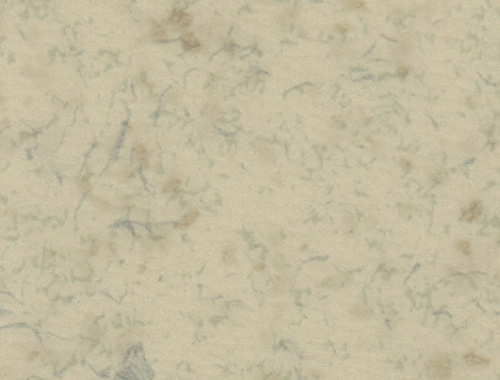

COLORS

  • SW-62

    SW-62

  • SW-61

    SW-61

  • SW-64

    SW-64

  • SW-63

    SW-63

  • SW-65

    SW-65

  • SW-66

    SW-66

  • SW-67

    SW-67

  • SW-68

    SW-68

  • SW-69

    SW-69

  • SW-70

    SW-70

  • SW-71

    SW-71

  • SW-72

    SW-72

TECHNICAL DATA

ITEMSTANDARDREQUIRMENTOceanStar
PERFORMANCE



Fire ratingGB8624-2006classBF1BF1
Slip resistanceBGR181groupR9R9
Dynamic coefficient of frictionEN 13893classDSDS
Impact sound insulation

ISO140-8

GB/T11982.1-1989

dB1010
SPECIFICATION



Width of sheetEN426m2.02.0
Length of sheetEN426m2015
Total thicknessEN428mm2.02.6
Thickness of wear layerEN429mm0.350.5
WeightEN430Kg/ m3.5±10%2.6±10%
Residual indentationEN433mm0.080.08
Dimensional stabilityEN434-0.05%0.05%
Color fastnessISO 105-002rating≥6≥6
Abrasion groupEN649groupTT
Thermal resistanceEN12667Mk/w<0.17<0.17
Thermal conductivityEN 12524W/Mk0.250.25
ADDITIONAL PROPERTY



Castor chair
Underfloor heatingVV
Antistatic behavious
Chemical resistanceVV



characteristicsstandardunitresult
type flooringEN 649
heterogeneous sheet
material

polyvinyl chloride
safety criteria
flammabilityGB 8624-2006classBF1
slip resistanceBGR 181groupR9
dynamic coefficient of frictionEN 13893classDS
impact sound reductionISO 140-8
GB/T 11982.1-1989
dB10
performance behavior
roll widthEN 426m2.0
roll lengthEN 426m15-20
overall thicknessEN 428mm2.0-3.0
thickness of wear layerEN 429mm0.35-0.5
residual indentationEN 433mm0.08
dimensional stabilityEM 434-0.05%
color fastnessISO 105-B02rating≥6
wear resistanceEN 649groupT
thermal resistanceEN 12667㎡K/W<0.17
thermal conductivityEN 12524W/Mk0.25
additional property
castor chairunderfloor heating
antistatic behaviouschemical resistance
